Kennametal
Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096769
MFR# 7096769Series A4
$44.06List $53.78
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description

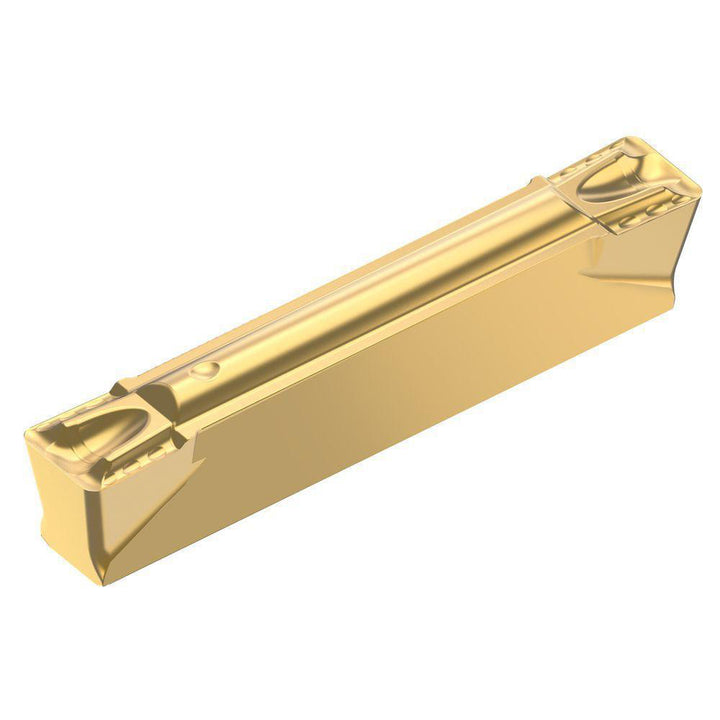

The Kennametal 7096769 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting width0.0790
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size2S
Insert size2S
Insert size code2S
Insert styleA4G
Insert thickness0.0790
Lead angle0.000
Manufacturer gradeKCU10B
Maximum depth of cut0.0750
Multi use toolYes
Number of cutting edges2
Overall length0.7870
RakePositive
Single or double endDouble End
