Kennametal
Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096816
MFR# 7096816Series A4
$39.19List $47.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description

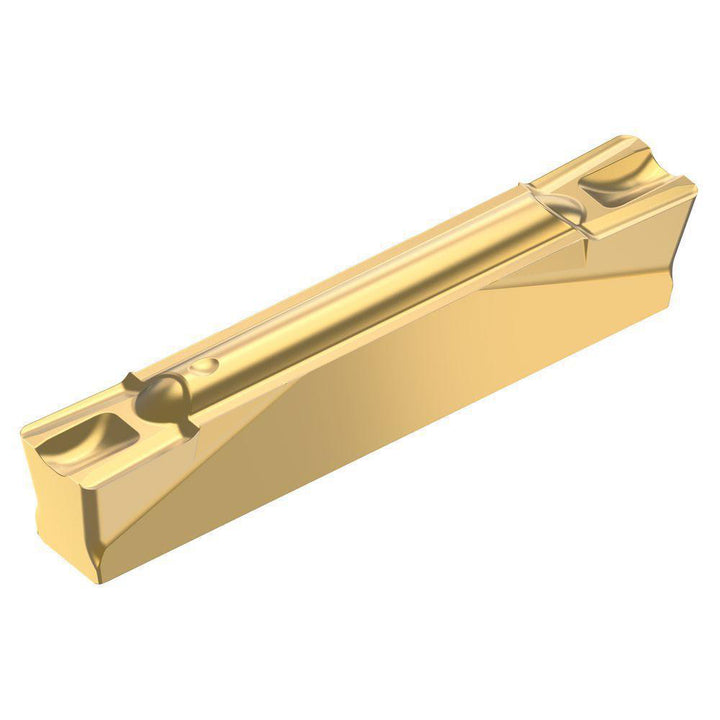

The Kennametal 7096816 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Corner radius0.0080
Cutting width0.158
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size code4
Insert styleA4G-P-GMP
Lead angle0
Manufacturer gradeKCU10B
Multi use toolYes
RakePositive
