Kennametal

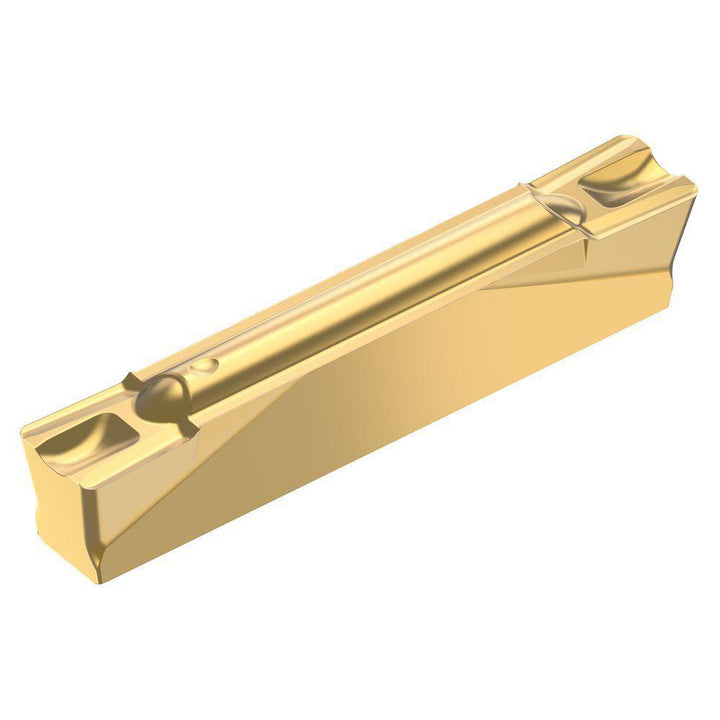

Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096842
MFR# 7096842Series A4
$38.49List $46.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096842 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Coating processPVD
Corner radius0.0390
Cutting width0.0790
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size2
Insert size2
Insert size code2
Insert styleA4R
Insert thickness0.0790
Lead angle0.000
Manufacturer gradeKCU10B
Maximum depth of cut0.0650
Multi use toolYes
Number of cutting edges2
Overall length0.7830
RakePositive
Single or double endDouble End
