Kennametal
Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7097832
MFR# 7097832Series A4
$40.58List $49.53
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description

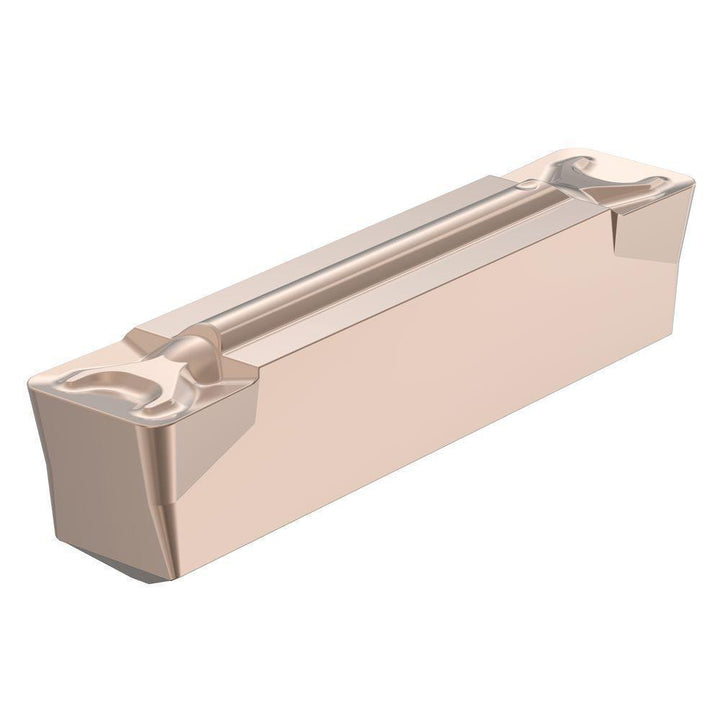

The Kennametal 7097832 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting width0.2382
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size6
Insert size6
Insert size code6
Insert styleA4G
Insert thickness0.2382
Lead angle0.000
Manufacturer gradeKCU10B
Maximum depth of cut0.1930
Multi use toolYes
Number of cutting edges2
Overall length1.1810
RakePositive
Single or double endDouble End
