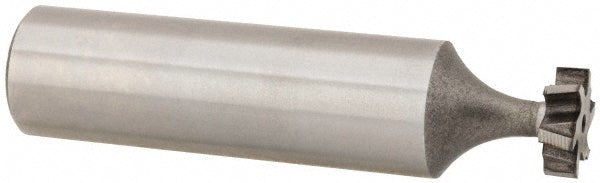

Woodruff/Keyseat Cutters & Sets - Keo 943-000-045

Keo

Woodruff/Keyseat Cutters & Sets - Keo 943-000-045

MFR# 943-000-045

$38.50List $52.91 Save 27%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.3/8

Description

The Keo 943-000-045 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hardened alloy.

Specifications

American standard number403
Connection typeShank
Cutter diameter in3/8
Cutter materialHigh Speed Steel
Cutting width in1/8
Neck length0.3750
Number of teeth6
Old standard number213
Overall length in2-1/8
Oversized for resharpeningNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hardened Alloy
Shank diameter in1/2
Tooth configurationStaggered
Weldon flatNo
