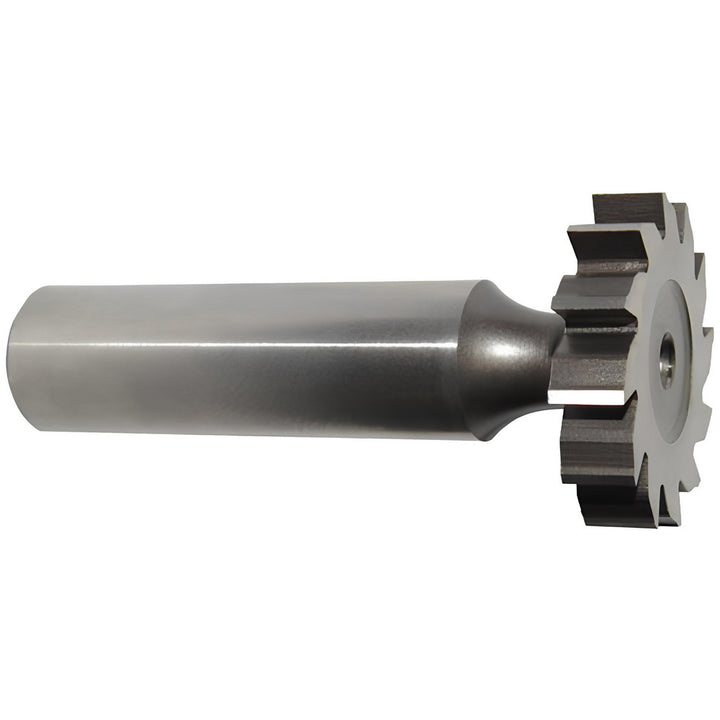

Woodruff/Keyseat Cutters & Sets - Keo 943-000-097

Keo

Woodruff/Keyseat Cutters & Sets - Keo 943-000-097

MFR# 943-000-097

$29.80List $40.95 Save 27%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.5/8

Description

The Keo 943-000-097 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hardened alloy.

Specifications

American standard number605
Connection typeShank
Cutter diameter in5/8
Cutter materialHigh Speed Steel
Cutting width in3/16
Neck length0.3750
Number of teeth10
Old standard number61
Overall length in2-3/16
Oversized for resharpeningNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hardened Alloy
Shank diameter in1/2
Tooth configurationStraight
Weldon flatNo
