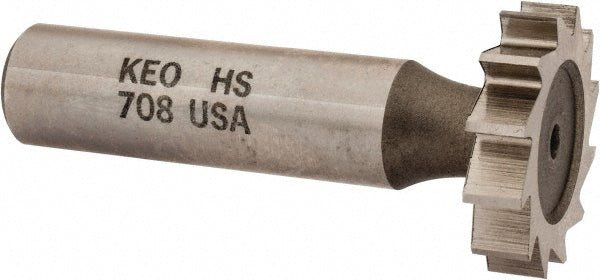

Woodruff/Keyseat Cutters & Sets - Keo 943-000-177

Keo

Woodruff/Keyseat Cutters & Sets - Keo 943-000-177

MFR# 943-000-177

$37.62List $51.70 Save 27%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.1

Description

The Keo 943-000-177 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hardened alloy.

Specifications

American standard number708
Connection typeShank
Cutter diameter in1
Cutter materialHigh Speed Steel
Cutting width in7/32
Neck length0.3750
Number of teeth12
Old standard number14
Overall length in2-7/32
Oversized for resharpeningNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hardened Alloy
Shank diameter in1/2
Tooth configurationStraight
Weldon flatNo
