KIPP

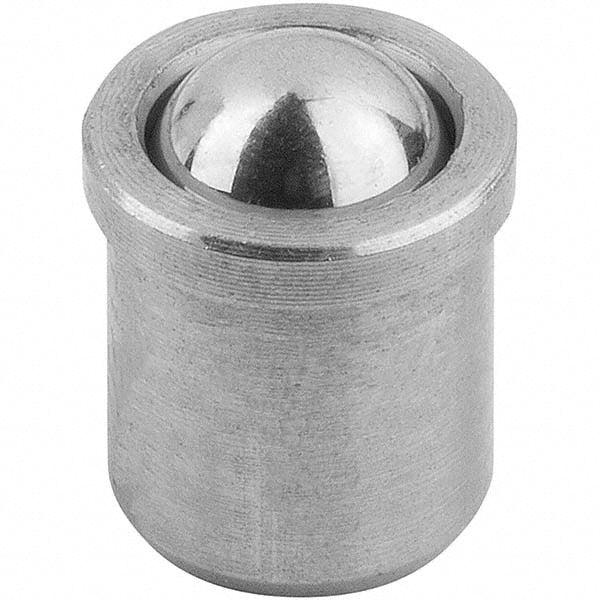

Spring Plunger - KIPP K0333.06.20
MFR# K0333.06.20
$1.63List $2.04
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The KIPP K0333.06.20 is a stainless steel spring plunger.
Specifications
Ball diameter0.3120
Ball materialStainless Steel
Body diameter (mm)6.00
Body length0.2756
Body materialStainless Steel
Final end force lb2.70
Final end force n12.00
Flange diameter6.5000
Flange thickness (mm)1.00
Initial end force lb1.35
Initial end force n6.00
Length under flange (mm)6.00
Maximum ball reach0.0591
Tolerance (mm)+0.080
