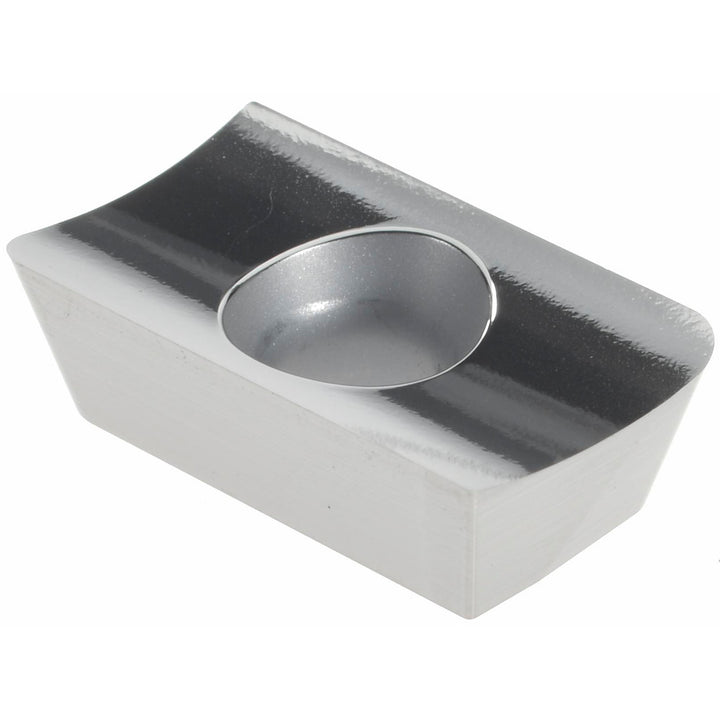

APET160416 Solid Carbide Insert, Grade KW10 - Kyocera 8832914

Kyocera

APET160416 Solid Carbide Insert, Grade KW10 - Kyocera 8832914

MFR# 8832914ISO/ANSI# APET160416Cat# APET160416Series OTMA

$32.46List $46.72 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeKW10
MaterialSolid Carbide

Description

The Kyocera 8832914 is a APET160416 solid carbide indexable insert, grade KW10. Suited for non-ferrous metal.

Specifications

Ansi codeAPET160416KW10
Chip breakerCommon
Coating processUncoated
Corner radius in1/16
Cutter series compatibilityFMAL; EM-AL; CM-AL
Cutting edge styleHoned
Hole diameter0.1575
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160416
Insert styleAPET
Iso codeAPET160416
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberAPET160416
Manufacturer gradeKW10
Material applicationNon-Ferrous Metal; Cast Iron
Material gradeC3
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11.00
Secondary workpiece materialCast Iron
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
