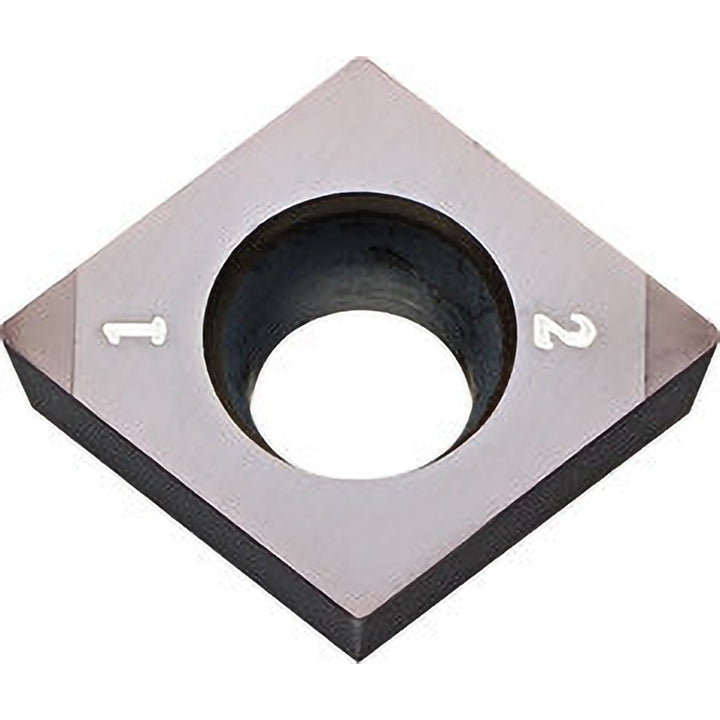

CCMW09T308S01225MES Cubic Boron Nitride (CBN) Insert, Grade KBN05M, MEGACOAT - Kyocera TBN01315

Kyocera

CCMW09T308S01225MES Cubic Boron Nitride (CBN) Insert, Grade KBN05M, MEGACOAT - Kyocera TBN01315

MFR# TBN01315ISO/ANSI# CCMW3252S00525MESKBN05MSeries ISOI

$80.44List $115.75 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeKBN05M
MaterialCubic Boron Nitride (CBN)
CoatingMEGACOAT

Description

The Kyocera TBN01315 is a CCMW09T308S01225MES cubic boron nitride (cbn) indexable insert, grade KBN05M, MEGACOAT coated. Suited for hard material.

Specifications

Clearance codeC
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMW3252S00525MESKBN05M
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 80
Insert size code3252
Insert styleCCMW
Insert thickness in5/32
Iso codeCCMW09T308S01225MES
Length range0.3000 - 0.4000
Manufacturers catalog numberTBN01315
Manufacturer gradeKBN05M
Material gradeH01; H10
Maximum depth of cut0.0709
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Relief angle7
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0709
Tolerance codeM
Width in3/8in
Wiper edgeNo
