Kyocera

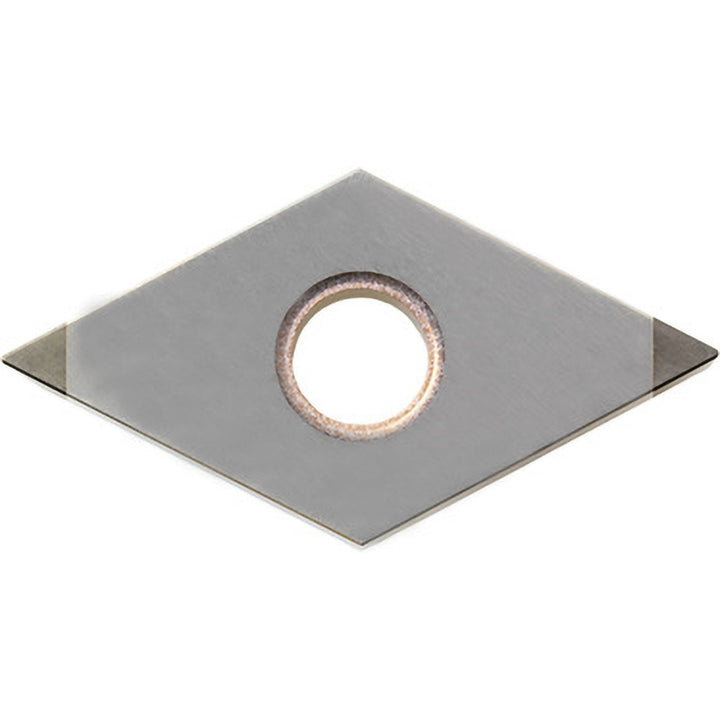

DNGA150404S01225ME CBN Insert, Grade KBN05M, MEGACOAT - Kyocera TBN02212
MFR# TBN02212ISO/ANSI# DNGA150404Series ISOI
$69.30List $99.73
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKBN05M
MaterialCBN
CoatingMEGACOAT
Description
The Kyocera TBN02212 is a DNGA150404S01225ME cbn indexable insert, grade KBN05M, MEGACOAT coated. Suited for hard material.
Specifications
Ansi insert codeDNGA431
Ansi size code431
Clearance codeN
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Hole diameter0.2032
Included angle55
Industry standard numberDNGA431S00525MEKBN05M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCBN
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150404S01225ME
Iso insert codeDNGA150404
Iso size code150404
Length range0.7000 - 10.0000
Manufacturers catalog numberTBN02212
Manufacturer gradeKBN05M
Material gradeH01; H10
Maximum depth of cut0.1024
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1024
Tolerance codeG
Width in1/2
Wiper edgeNo
