Kyocera

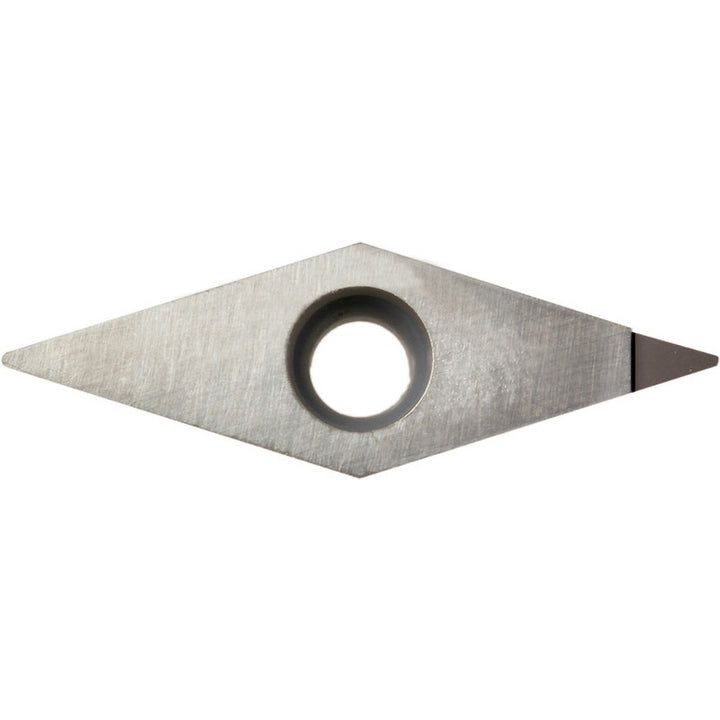

VBMT160401SE PCD Insert, Grade KPD001 - Kyocera TBR05638
MFR# TBR05638ISO/ANSI# VBMT3302SEKPD001Series ISOI
$50.05List $72.02
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKPD001
MaterialPCD
Description
The Kyocera TBR05638 is a VBMT160401SE pcd indexable insert, grade KPD001. Suited for non-ferrous metal, superalloys.
Specifications
Clearance codeB
Coating processUncoated
Corner radius in1/256
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle35degree
Industry standard numberVBMT3302SEKPD001
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3080
Insert materialPCD
Insert shapeDiamond 35
Insert size code3302
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160401SE
Length range0.7000 - 10.0000
Manufacturers catalog numberTBR05638
Manufacturer gradeKPD001
Material gradeSuper Micrograin
Maximum depth of cut0.1063
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal; Superalloys
RakePositive
Rake angle10
Relief angle5
Secondary workpiece materialSuperalloy
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tip length0.1063
Tolerance codeM
Width in3/8in
Wiper edgeNo
