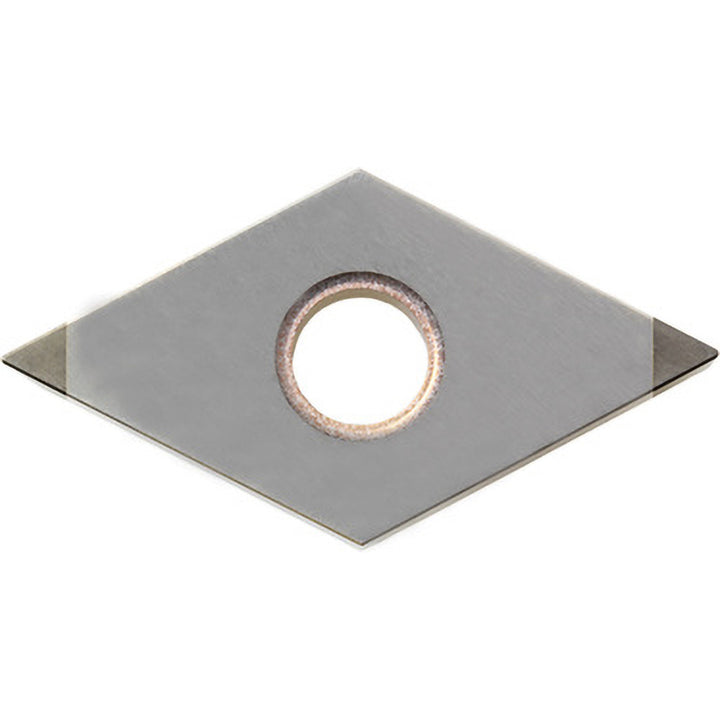

DNGA150408S01730MET Cubic Boron Nitride (CBN) Insert, Grade KBN25M, MEGACOAT - Kyocera TBZ02221

Kyocera

DNGA150408S01730MET Cubic Boron Nitride (CBN) Insert, Grade KBN25M, MEGACOAT - Kyocera TBZ02221

MFR# TBZ02221ISO/ANSI# DNGA432S00730METKBN25MSeries ISOI

$69.30List $99.73 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeKBN25M
MaterialCubic Boron Nitride (CBN)
CoatingMEGACOAT

Description

The Kyocera TBZ02221 is a DNGA150408S01730MET cubic boron nitride (cbn) indexable insert, grade KBN25M, MEGACOAT coated. Suited for hard material.

Specifications

Clearance codeN
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2032
Included angle55degree
Industry standard numberDNGA432S00730METKBN25M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 55
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150408S01730MET
Length range0.7000 - 10.0000
Manufacturers catalog numberTBZ02221
Manufacturer gradeKBN25M
Material gradeMicrograin
Maximum depth of cut0.0866
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0866
Tolerance codeG
Width in1/2
Wiper edgeNo
