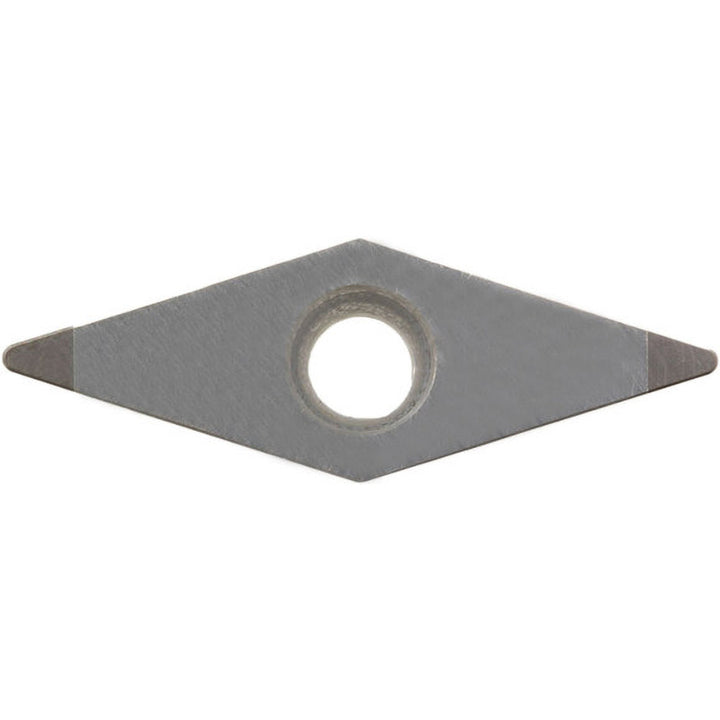

VBGW110304T00815ME Cubic Boron Nitride (CBN) Insert, Grade KBN25M, MEGACOAT - Kyocera TBZ05472

Kyocera

VBGW110304T00815ME Cubic Boron Nitride (CBN) Insert, Grade KBN25M, MEGACOAT - Kyocera TBZ05472

MFR# TBZ05472ISO/ANSI# VBGW221T00315MEKBN25MSeries ISOI

$71.79List $103.30 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeKBN25M
MaterialCubic Boron Nitride (CBN)
CoatingMEGACOAT

Description

The Kyocera TBZ05472 is a VBGW110304T00815ME cubic boron nitride (cbn) indexable insert, grade KBN25M, MEGACOAT coated. Suited for hard material.

Specifications

Clearance codeB
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVBGW221T00315MEKBN25M
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8720
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 35
Insert size code221
Insert styleVBGW
Insert thickness in1/8
Iso codeVBGW110304T00815ME
Length range0.7000 - 10.0000
Manufacturers catalog numberTBZ05472
Manufacturer gradeKBN25M
Material gradeMicrograin
Maximum depth of cut0.0787
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Relief angle5
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0787
Tolerance codeG
Width in1/4in
Wiper edgeNo
