Kyocera

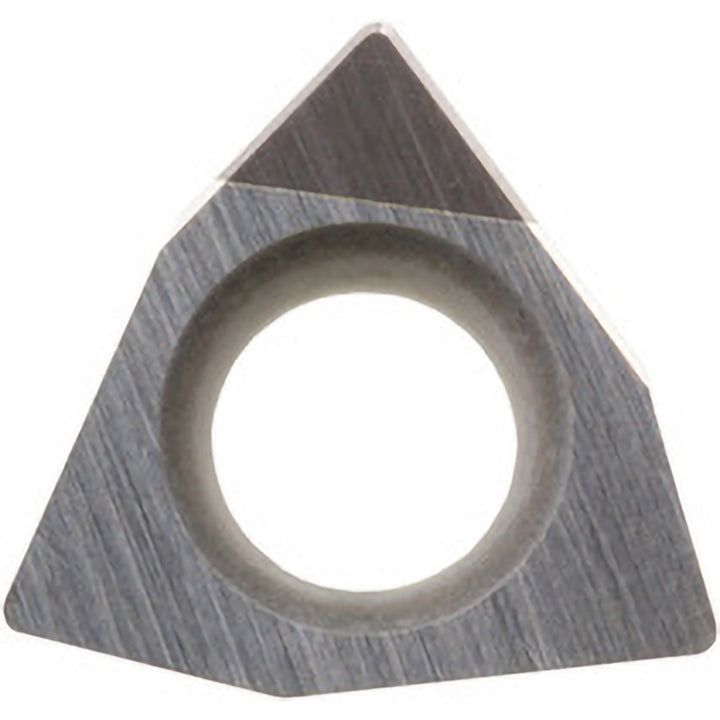

WBGW060102T00815L-SE Cubic Boron Nitride (CBN) Insert, Grade KBN25M, MEGACOAT - Kyocera TBZ07002
MFR# TBZ07002ISO/ANSI# WBGW060102T00815L-SESeries ISOI
$43.31List $62.33
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeKBN25M
MaterialCubic Boron Nitride (CBN)
CoatingMEGACOAT
Description
The Kyocera TBZ07002 is a WBGW060102T00815L-SE cubic boron nitride (cbn) indexable insert, grade KBN25M, MEGACOAT coated. Suited for hard material.
Specifications
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/128
Hole diameter0.0906
Included angle80
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCubic Boron Nitride (CBN)
Insert shapeTrigon
Insert size code12105
Insert styleWBGW
Iso codeWBGW060102T00815L-SE
Length0.3940
Manufacturers catalog numberTBZ07002
Manufacturer gradeKBN25M
Material gradeMicrograin
Maximum depth of cut0.0748
Number of cutting edges1
Primary workpiece materialHard Material
RakePositive
Relief angle5
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Width0.394
