Kyocera

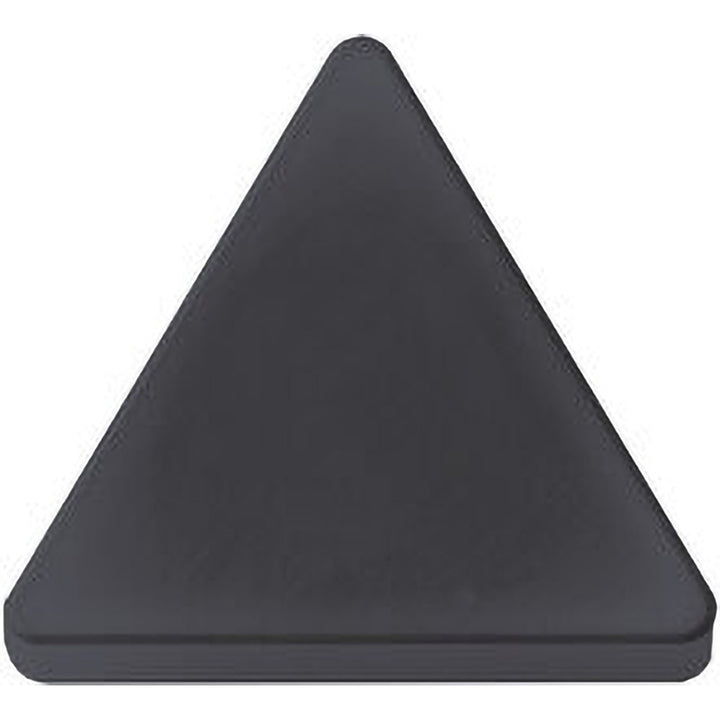

TNGN160412T02025 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR00580
MFR# TCR00580ISO/ANSI# TNG333T00825A65Series ISOI
$13.37List $19.23
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR00580 is a TNGN160412T02025 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in3/64
Full radiusNo
Included angle60degree
Industry standard numberTNG333T00825A65
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6501
Insert materialCeramic
Insert shapeTriangle
Insert size code333
Insert styleTNG
Insert thickness in3/16
Iso codeTNGN160412T02025
Length range0.6500 - 0.7000
Manufacturers catalog numberTCR00580
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.2167
Multi use applicationCopying; External Turning; Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
