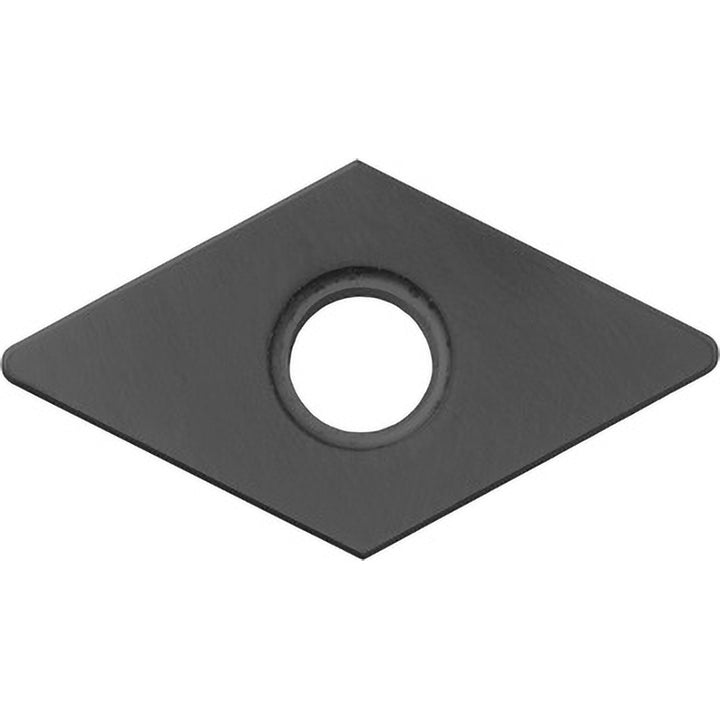

DNGA150404T02025 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR00960

Kyocera

DNGA150404T02025 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR00960

MFR# TCR00960ISO/ANSI# DNGA431T00825A65Series ISOI

$26.09List $37.55 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeA65
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCR00960 is a DNGA150404T02025 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.

Specifications

Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.2032
Included angle55degree
Industry standard numberDNGA431T00825A65
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCeramic
Insert shapeDiamond 55
Insert size code431
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150404T02025
Length range0.7000 - 10.0000
Manufacturers catalog numberTCR00960
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.3940
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
