Kyocera

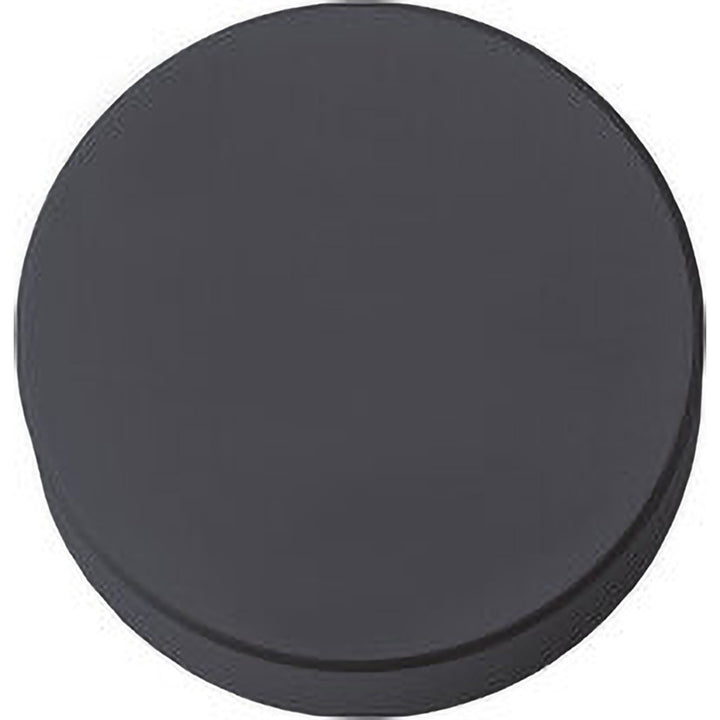

RNGN120400T02025 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR01040
MFR# TCR01040ISO/ANSI# RNG43T00825A65Series ISOI
$15.54List $22.35
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR01040 is a RNGN120400T02025 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in1/4
Full radiusYes
Included angle360degree
Industry standard numberRNG43T00825A65
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeRound
Insert size code43
Insert styleRNG
Insert thickness in3/16
Iso codeRNGN120400T02025
Length range0.5000 - 0.6000
Manufacturers catalog numberTCR01040
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.2500
Multi use applicationCopying; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
