Kyocera

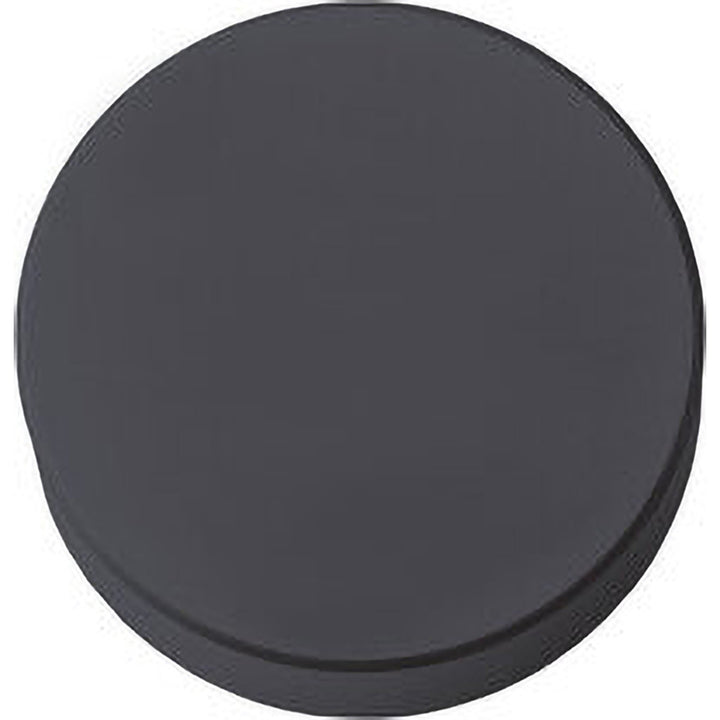

RNGN150700T02025 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR01070
MFR# TCR01070ISO/ANSI# RNG55T00825A65Series ISOI
$32.04List $46.10
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeRound
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR01070 is a RNGN150700T02025 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in5/16
Cutting edge styleChamfered
Full radiusYes
Included angle360degree
Industry standard numberRNG55T00825A65
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp
Insert length in5/8
Insert materialCeramic
Insert shapeRound
Insert size code55
Insert styleRNG
Insert thickness in5/16
Iso codeRNGN150700T02025
Length range0.6000 - 0.6500
Manufacturers catalog numberTCR01070
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.3125
Multi use applicationCopying; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in5/8in
Wiper edgeNo
