Kyocera

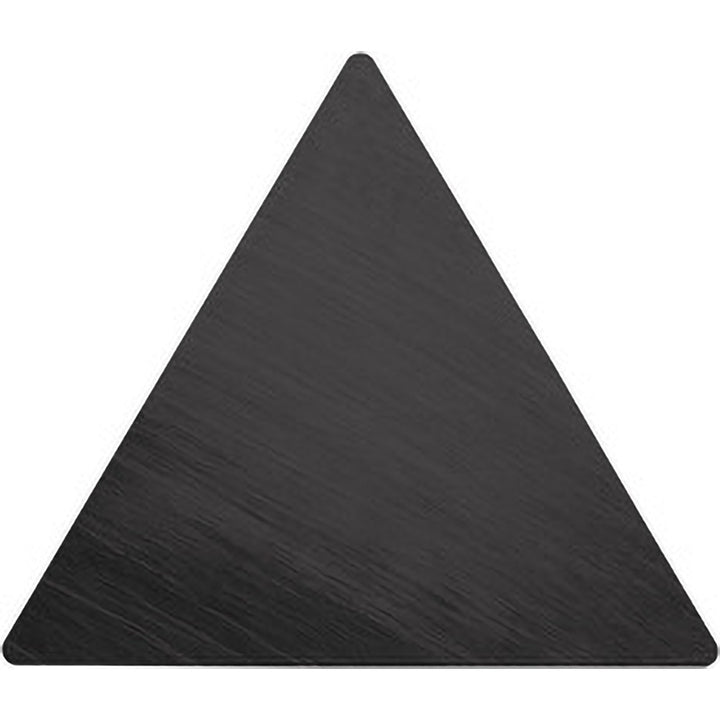

TPGN110304T00820 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR01210
MFR# TCR01210ISO/ANSI# TPG221T00320A65Series ISOI
$14.83List $21.33
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR01210 is a TPGN110304T00820 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeP
Coating finishAl2O3
Coating processUncoated
Corner radius in1/64
Full radiusNo
Included angle60degree
Industry standard numberTPG221T00320A65
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4334
Insert materialCeramic
Insert shapeTriangle
Insert size code221
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN110304T00820
Length range0.4000 - 0.5000
Manufacturers catalog numberTCR01210
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.1445
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron; Hard Material
RakePositive
Relief angle11
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width0.4334in
Wiper edgeNo
