Kyocera

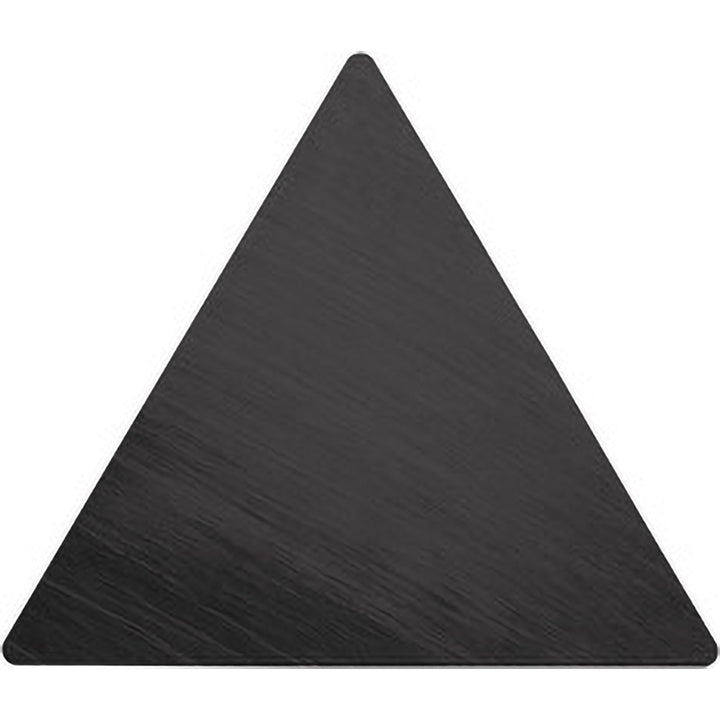

TPGN160304T00820 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR01240
MFR# TCR01240ISO/ANSI# TPG321T00320A65Series ISOI
$17.11List $24.62
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR01240 is a TPGN160304T00820 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeP
Coating finishAl2O3
Coating processUncoated
Corner radius in1/64
Full radiusNo
Included angle60degree
Industry standard numberTPG321T00320A65
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6501
Insert materialCeramic
Insert shapeTriangle
Insert size code321
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160304T00820
Length range0.6500 - 0.7000
Manufacturers catalog numberTCR01240
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron; Hard Material
RakePositive
Relief angle11
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
