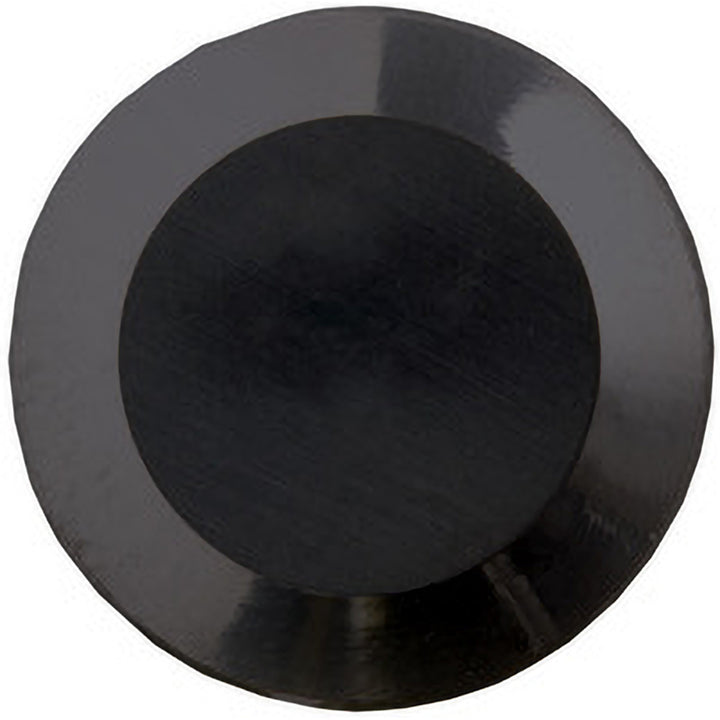

RCGX191000P20015 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR61130
MFR# TCR61130ISO/ANSI# RCGX106T08015625AAA65Series ISOI
$51.57List $74.21
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeRound
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR61130 is a RCGX191000P20015 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeC
Coating finishAl2O3
Coating processUncoated
Corner radius in3/8
Full radiusYes
Included angle360degree
Industry standard numberRCGX106T08015625AAA65
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp
Insert length in3/4
Insert materialCeramic
Insert shapeRound
Insert size code106T0
Insert styleRCGX
Insert thickness0.3940
Iso codeRCGX191000P20015
Length range0.7000 - 10.0000
Manufacturers catalog numberTCR61130
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.3750
Multi use applicationExternal Turning; Facing; Roll Machining; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/4in
Wiper edgeNo
