Kyocera

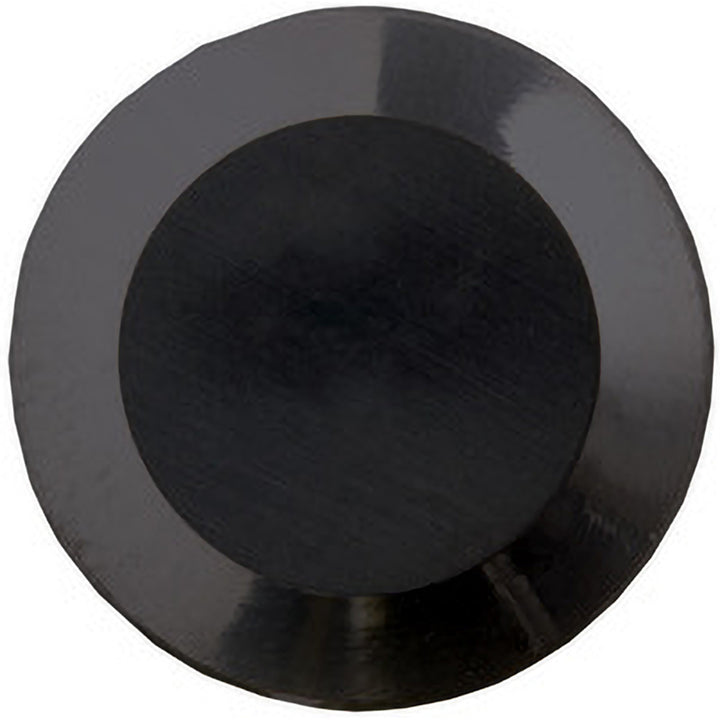

RCGX102H315T04015 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR89148
MFR# TCR89148ISO/ANSI# RCGX102H315T04015A65Series ISOI
$34.22List $49.24
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRound
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR89148 is a RCGX102H315T04015 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeC
Coating finishAl2O3
Coating processUncoated
Corner radius in1/8
Full radiusYes
Included angle360degree
Industry standard numberRCGX102H315T04015A65
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length in1/4
Insert materialCeramic
Insert shapeRound
Insert size code102H315
Insert styleRCGX
Insert thickness in5/16
Iso codeRCGX102H315T04015
Length range0.0000 - 0.3000
Manufacturers catalog numberTCR89148
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.1250
Multi use applicationExternal Turning; Facing; Roll Machining; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
