Kyocera

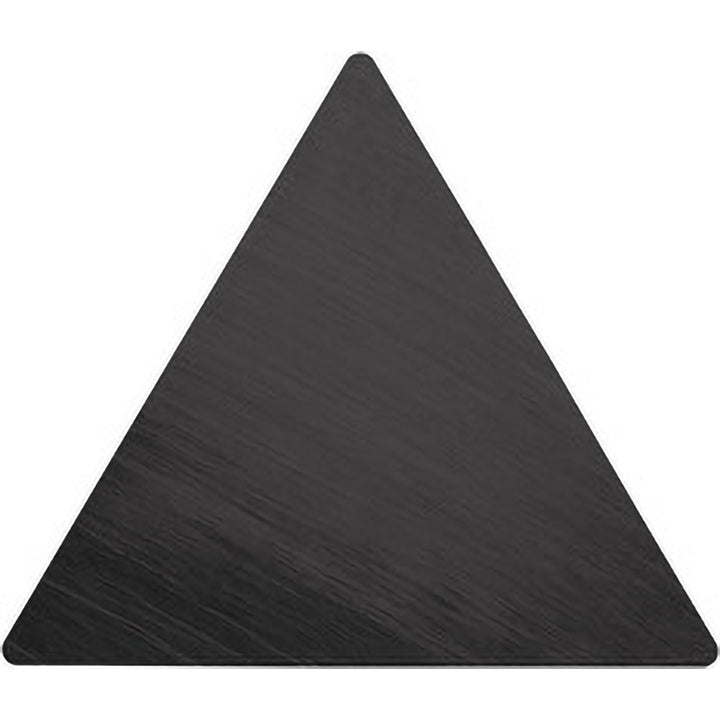

TPG432T00320 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR89310
MFR# TCR89310ISO/ANSI# TPG432T00320A65Series ISOI
$24.58List $35.37
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR89310 is a TPG432T00320 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeP
Coating finishAl2O3
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle60degree
Industry standard numberTPG432T00320A65
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8668
Insert materialCeramic
Insert shapeTriangle
Insert size code432
Insert styleTPG
Insert thickness in3/16
Iso codeTPG432T00320
Length range0.7000 - 10.0000
Manufacturers catalog numberTCR89310
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.2889
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron; Hard Material
RakePositive
Relief angle11
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width0.8668in
Wiper edgeNo
