Kyocera

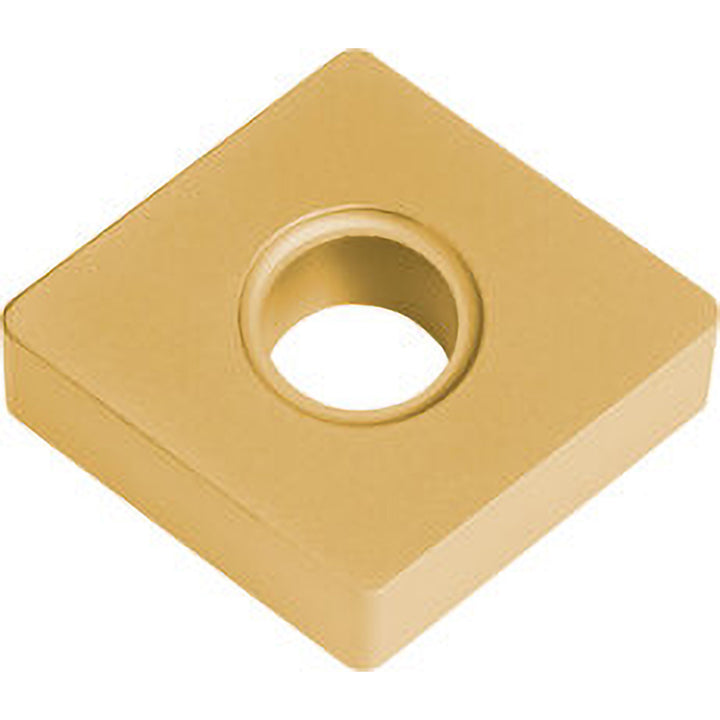

CNMA432T00625 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS80001
MFR# TCS80001ISO/ANSI# CNMA432T00625A66NSeries ISOI
$21.00List $30.21
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeA66N
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCS80001 is a CNMA432T00625 ceramic indexable insert, grade A66N, Al2O3 coated. Suited for hard material.
Specifications
Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMA432T00625A66N
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCeramic
Insert shapeDiamond 80
Insert size code432
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA432T00625
Length range0.5000 - 0.6000
Manufacturers catalog numberTCS80001
Manufacturer gradeA66N
Material gradeH01; H10
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
