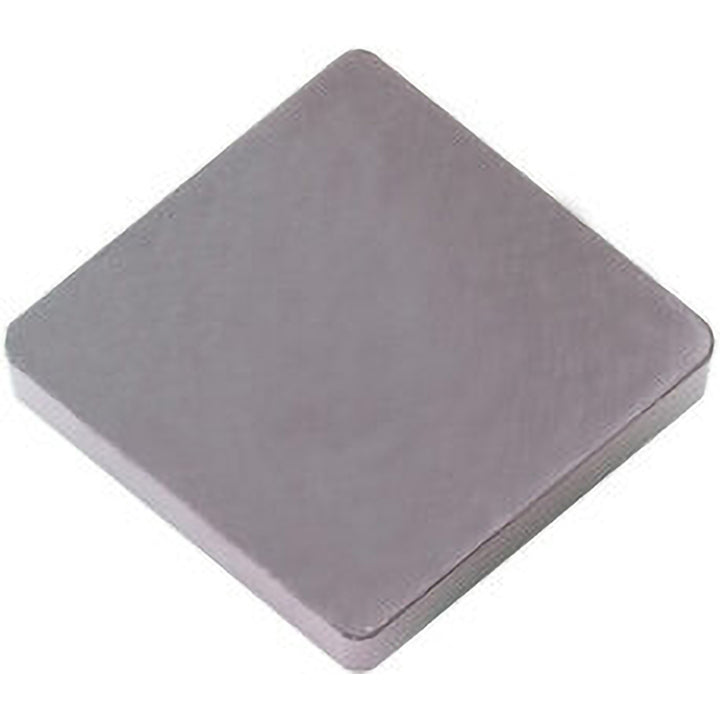

CNGN120408T02025 Ceramic Insert, Grade PT600M, Al2O3 - Kyocera TCV01208

Kyocera

CNGN120408T02025 Ceramic Insert, Grade PT600M, Al2O3 - Kyocera TCV01208

MFR# TCV01208ISO/ANSI# CNG120408Series ISOI

$20.33List $29.25 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradePT600M
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCV01208 is a CNGN120408T02025 ceramic indexable insert, grade PT600M, Al2O3 coated. Suited for hard material.

Specifications

Ansi insert codeCNG432
Ansi size code432
Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance
Included angle80
Industry standard numberCNG432T00825PT600M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNG
Insert thickness in3/16
Iso codeCNGN120408T02025
Iso insert codeCNG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog numberTCV01208
Manufacturer gradePT600M
Material gradeK01; K10
Maximum depth of cut0.1667
Multi use applicationExternal Turning; Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
