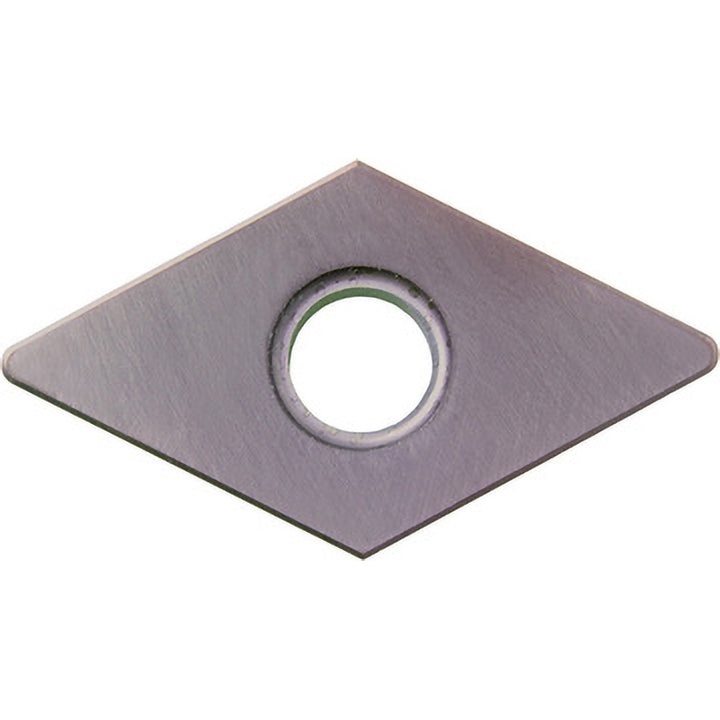

DNGA150408T02025 Ceramic Insert, Grade PT600M, Al2O3 - Kyocera TCV02007

Kyocera

DNGA150408T02025 Ceramic Insert, Grade PT600M, Al2O3 - Kyocera TCV02007

MFR# TCV02007ISO/ANSI# DNGA432T00825PT600MSeries ISOI

$28.65List $41.22 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradePT600M
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCV02007 is a DNGA150408T02025 ceramic indexable insert, grade PT600M, Al2O3 coated. Suited for hard material.

Specifications

Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered
Full radiusNo
Hole diameter0.2032
Included angle55degree
Industry standard numberDNGA432T00825PT600M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCeramic
Insert shapeDiamond 55
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150408T02025
Length range0.7000 - 10.0000
Manufacturers catalog numberTCV02007
Manufacturer gradePT600M
Material gradeK01; K10
Maximum depth of cut0.3940
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
