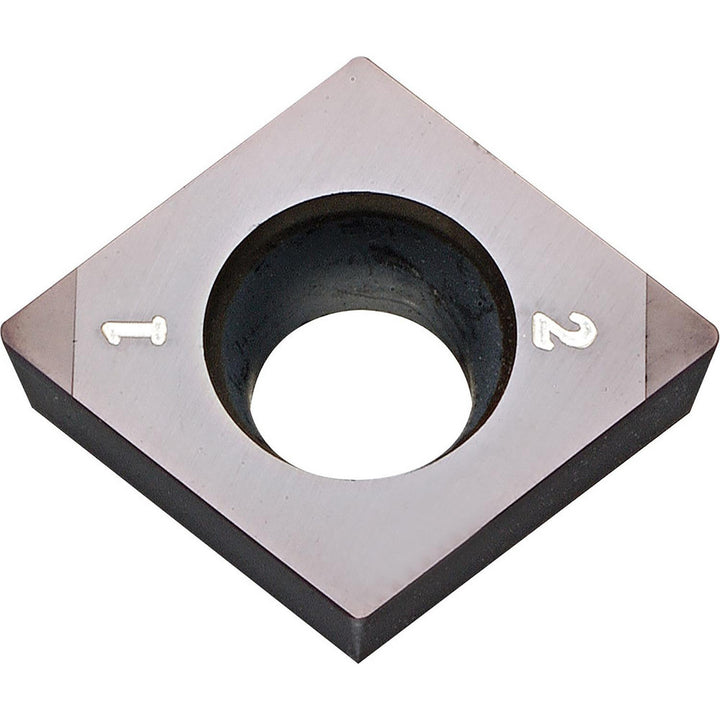

CCMW09T304S01225MES Cubic Boron Nitride (CBN) Insert, Grade KBN475 - Kyocera TFB01314

Kyocera

CCMW09T304S01225MES Cubic Boron Nitride (CBN) Insert, Grade KBN475 - Kyocera TFB01314

MFR# TFB01314ISO/ANSI# CCMW3251S00525MESKBN475Series ISOI

$68.35List $98.35 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeKBN475
MaterialCubic Boron Nitride (CBN)

Description

The Kyocera TFB01314 is a CCMW09T304S01225MES cubic boron nitride (cbn) indexable insert, grade KBN475. Suited for cast iron.

Specifications

Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMW3251S00525MESKBN475
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 80
Insert size code3251
Insert styleCCMW
Insert thickness in5/32
Iso codeCCMW09T304S01225MES
Length range0.3000 - 0.4000
Manufacturers catalog numberTFB01314
Manufacturer gradeKBN475
Material gradeK01; K10
Maximum depth of cut0.0748
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Single or multi tippedMulti Tipped
Tip length0.0748
Tolerance codeM
Width in3/8in
Wiper edgeNo
