Kyocera

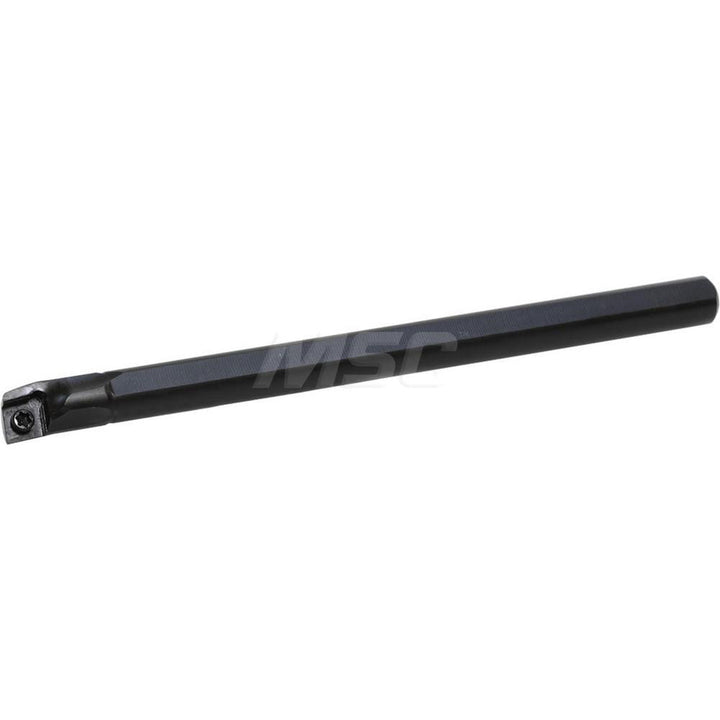

Indexable Boring - Kyocera THC89270
MFR# THC89270Series GPBB
$131.90List $163.49
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera THC89270 indexable boring. Series GPBB.
Specifications
Center to cutting edge0.1970
Compatible insert shapeDiamond
Compatible insert size code215
Compatible insert thickness0.0938
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationBoring; Facing
Hand of holderRight Hand
Insert compatibilityCCGT 215..; CCGW 215..; CCMT 215..; CCMW 215..
Insert holding methodScrew
Insert inscribed circle in1/4
Insert thickness in3/32
Lead angle5.00
Maximum bore depth0.6250
Minimum bore diameter0.3940
Multi use applicationInternal Facing
Multi use toolYes
Number of inserts used on toolholder1
Overall length5.0000
RakeNegative
Rake angle-12.00
Shank diameter0.3120
Toolholder styleS...SCLP(C)
Tool materialSteel
