Kyocera

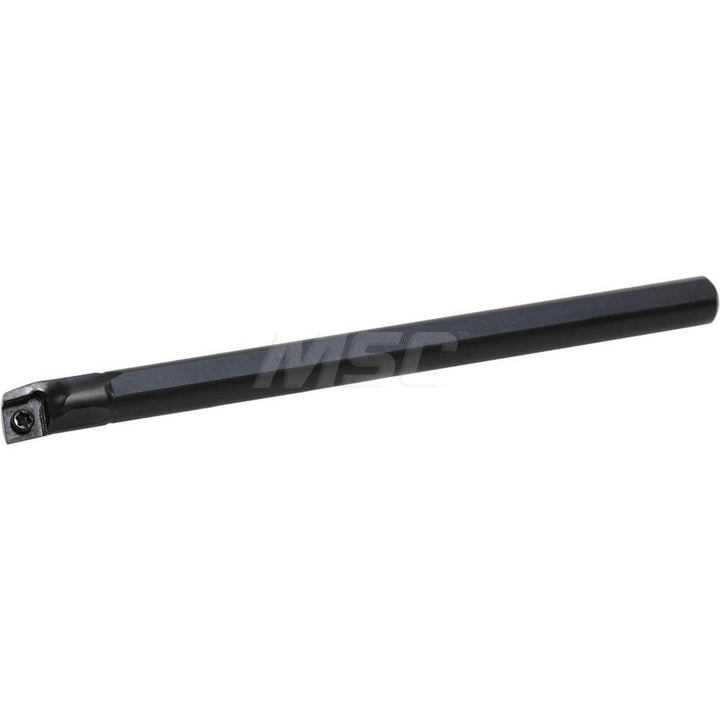

Indexable Boring - Kyocera THC89272
MFR# THC89272Series GPBB
$127.22List $157.67
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera THC89272 indexable boring. Series GPBB.
Specifications
Center to cutting edge0.3150
Compatible insert shapeDiamond
Compatible insert size code32
Compatible insert thickness0.1250
Coolant throughNo
Cutting tool applicationBoring; Facing
Hand of holderRight Hand
Insert compatibilityCPGB 32..; CPMB 32..; CPMH 32..; CPMT 32..
Insert holding methodScrew
Insert inscribed circle in3/8
Insert thickness in1/8
Lead angle5
Maximum bore depth1.1800
Minimum bore diameter0.6300
Multi use toolYes
Number of inserts used on toolholder1
Overall length6.0000
RakeNegative
Rake angle-4.00
Shank diameter in1/2
StandardsANSI; ISO
Toolholder styleS...SCLP(C)
Tool materialSteel
