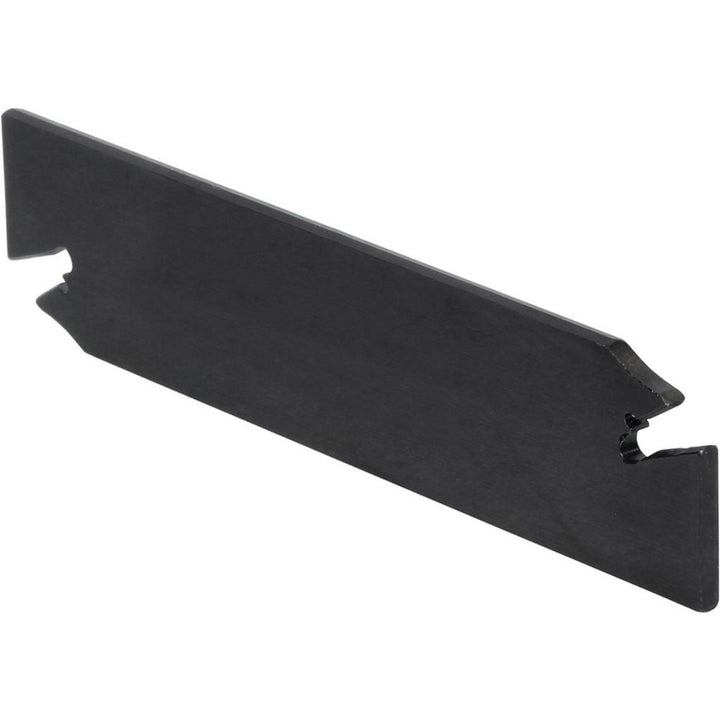

Indexable Cut-Off - Kyocera THP05220
MFR# THP05220Cat# KTKB323SSeries KTB-S
$125.55List $155.61
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera THP05220 indexable cut-off. Series KTB-S.
Specifications
Blade height1.2598
Blade overall length5.9055
Blade styleKTKB
Blade width0.1024
Compatible insert size code3; 3-P
Compatible insert styleTK; TKN
Complete insert compatibilityTKN 3; TKN 3-P; TKR/L 3; TKR/L 3-P
Complete tool block toolholder style compatibilityKTKTB 20-32; KTKTB 25-32; KTKTB 32-32; KTKTBF 25-32; KTKTBF 32-32
Cutting directionNeutral
Cutting height0.9843
Cutting tool applicationCut-Off
End typeDouble
HandLeft Hand; Right Hand
Insert holding methodSelf Grip
Insert styleTKN 3; TKN 3-P; TKR/L 3; TKR/L 3-P
Insert typeTKN
Insert width0.122047
Insert width (mm)3.10
Manufacturers catalog numberKTKB323S
Maximum workpiece diameter3.9370
Minimum insert width0.1220
StandardsISO
Tool block styleKTKTB
Tool materialSteel
