Kyocera

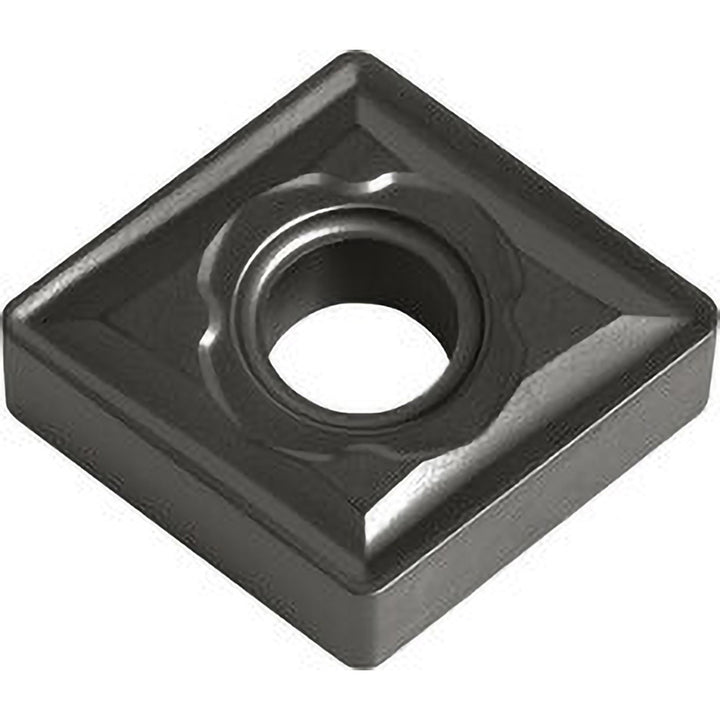

CNMG160612C Carbide Insert, Grade CA4515, TiCN - Kyocera TJH01035
MFR# TJH01035ISO/ANSI# CNMG160612Series ISOI
$18.05List $25.96
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeCA4515
MaterialCarbide
CoatingTiCN
Description
The Kyocera TJH01035 is a CNMG160612C carbide indexable insert, grade CA4515, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeCNMG543
Ansi size code543
Chip breakerC
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543CCA4515
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1-1/64
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612C
Iso insert codeCNMG160612
Iso size code160612
Length range0.6000 - 0.6500
Manufacturers catalog numberTJH01035
Manufacturer gradeCA4515
Material gradeK10; K20
Maximum depth of cut0.2083
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle-14
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
