Kyocera

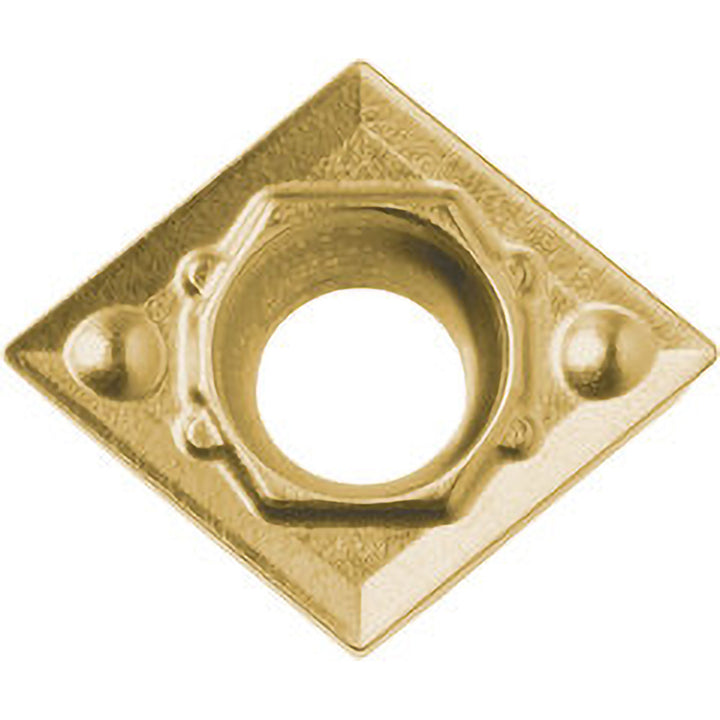

CCMT09T308HQ Carbide Insert, Grade CA6525, TiCN - Kyocera TJV00484
MFR# TJV00484ISO/ANSI# CCMT3252HQCA6525Series ISOI
$15.36List $22.10
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeCA6525
MaterialCarbide
CoatingTiCN
Description
The Kyocera TJV00484 is a CCMT09T308HQ carbide indexable insert, grade CA6525, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerHQ
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3252HQCA6525
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeDiamond 80
Insert size code3252
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308HQ
Length range0.3000 - 0.4000
Manufacturers catalog numberTJV00484
Manufacturer gradeCA6525
Material gradeM20; S20; S30
Maximum depth of cut0.1250
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialSuperalloy
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
