Kyocera

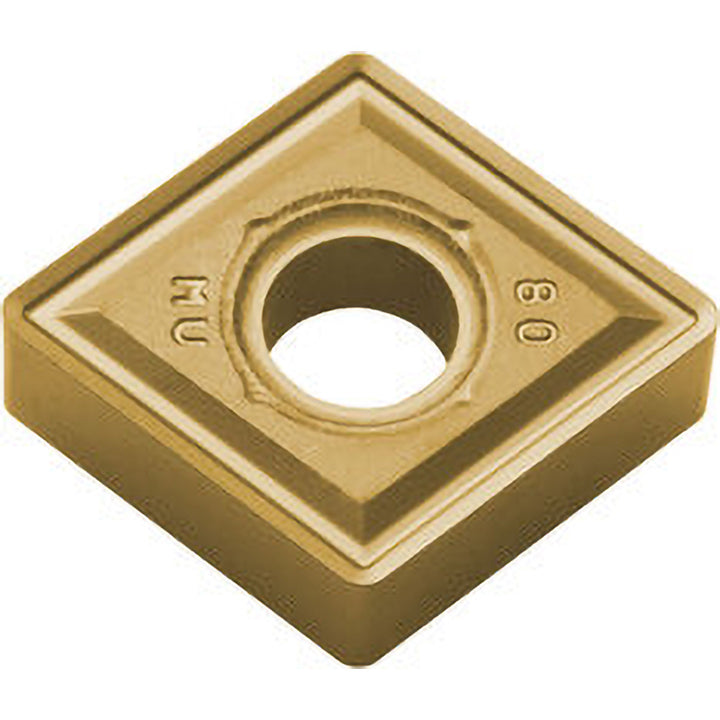

CNMG120408MU Carbide Insert, Grade CA6525, TiCN - Kyocera TJV00927
MFR# TJV00927ISO/ANSI# CNMG432MUCA6525Series ISOI
$12.62List $18.17
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeCA6525
MaterialCarbide
CoatingTiCN
Description
The Kyocera TJV00927 is a CNMG120408MU carbide indexable insert, grade CA6525, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMU
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG432MUCA6525
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1-1/64
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408MU
Length range0.5000 - 0.6000
Manufacturers catalog numberTJV00927
Manufacturer gradeCA6525
Material gradeM20; S20; S30
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle-15
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
