Kyocera

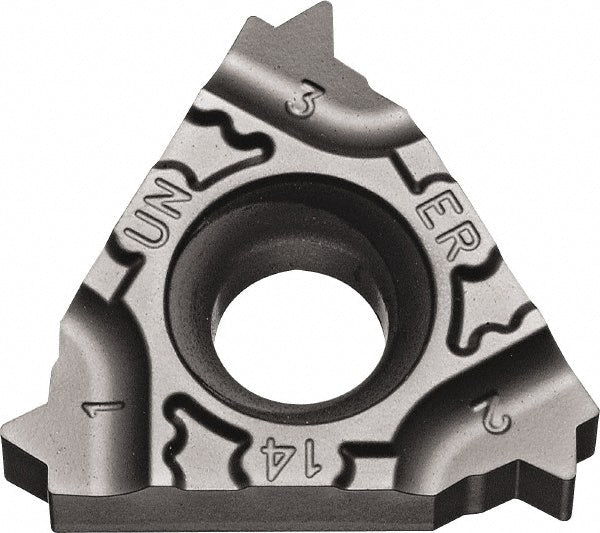

ISO 13485 Carbide Insert, Grade PR1115, TiAlN - Kyocera TJY18884
MFR# TJY18884ISO/ANSI# ISO 13485Series TF
$21.74List $31.28
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1115
MaterialCarbide
CoatingTiAlN
Description
The Kyocera TJY18884 is a ISO 13485 carbide indexable insert, grade PR1115, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0071
Hole diameter0.1575
Included angle60
Inscribed circle (mm)9.53
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Iso codeISO 13485
Manufacturer gradePR1115
Primary workpiece materialUniversal
StandardsFDA; ISO 13485
Thickness0.1449
Threads per inch18
Thread standardUN
Thread typeExternal
