Kyocera
WCMX050308M1A Solid Carbide Insert, Grade PR1230, Coated - Kyocera TKC89001
MFR# TKC89001ISO/ANSI# WCMX050308M1ASeries Holeshot Drill & Coremaster Coredrill
$17.77List $25.58
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/16
GradePR1230
MaterialSolid Carbide
CoatingCoated
Description

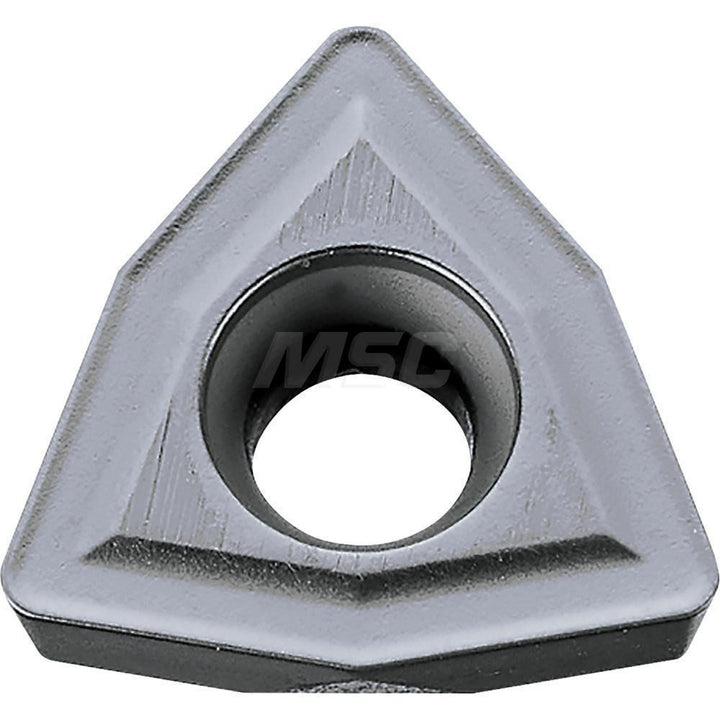

The Kyocera TKC89001 is a WCMX050308M1A solid carbide indexable insert, grade PR1230, Coated coated. Suited for steel.
Specifications
Ansi codeWCMX050308M1A PR1230
ChipbreakerM1A
Coating finishCoated
Coating processPVD
Corner radius in1/32
Cutting directionRight Hand
Hole diameter0.1250
Included angle degree80
Inscribed circle in5/16
Insert materialSolid Carbide
Insert size50308
Insert size code05
Insert styleWCMX
Iso codeWCMX050308M1A
Manufacturer gradePR1230
Primary workpiece materialSteel
RakePositive
Relief angle7
ShapeTrigon
StandardsANSI; ISO
Thickness in1/8
