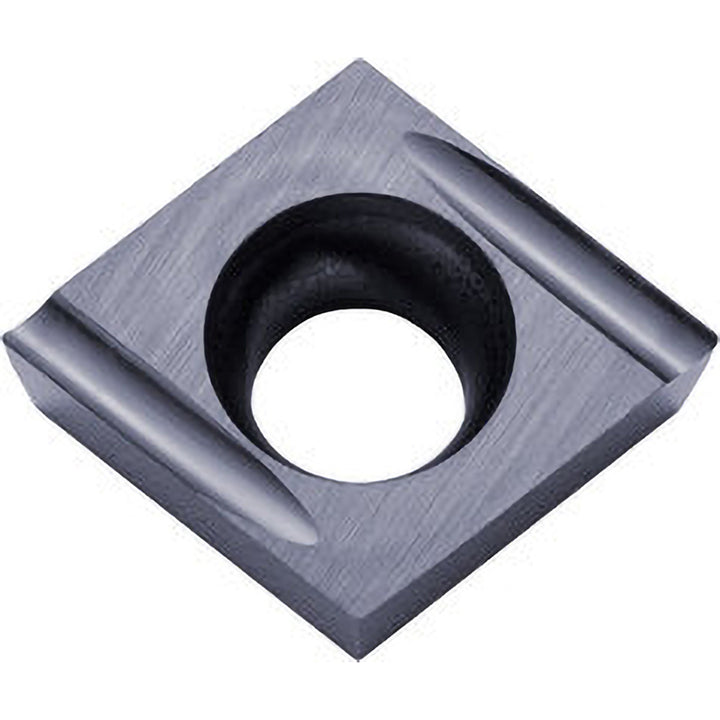

CCGT060202MFR-U Carbide Insert, Grade PR1225, MEGACOAT - Kyocera TKE01325
MFR# TKE01325ISO/ANSI# CCGT21505MFRUPR1225Series ISOI
$17.48List $25.15
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradePR1225
MaterialCarbide
CoatingMEGACOAT
Description
The Kyocera TKE01325 is a CCGT060202MFR-U carbide indexable insert, grade PR1225, MEGACOAT coated. Suited for stainless steel.
Specifications
Chip breakerU
Clearance codeC
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1102
Included angle80degree
Industry standard numberCCGT21505MFRUPR1225
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21505
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202MFR-U
Length range0.0000 - 0.3000
Manufacturers catalog numberTKE01325
Manufacturer gradePR1225
Material gradeP10; P20; P30; M10; M20; M30; M40
Maximum depth of cut0.0833
Multi use applicationBoring; External Turning; Facing; Internal Facing; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle30
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
