Kyocera

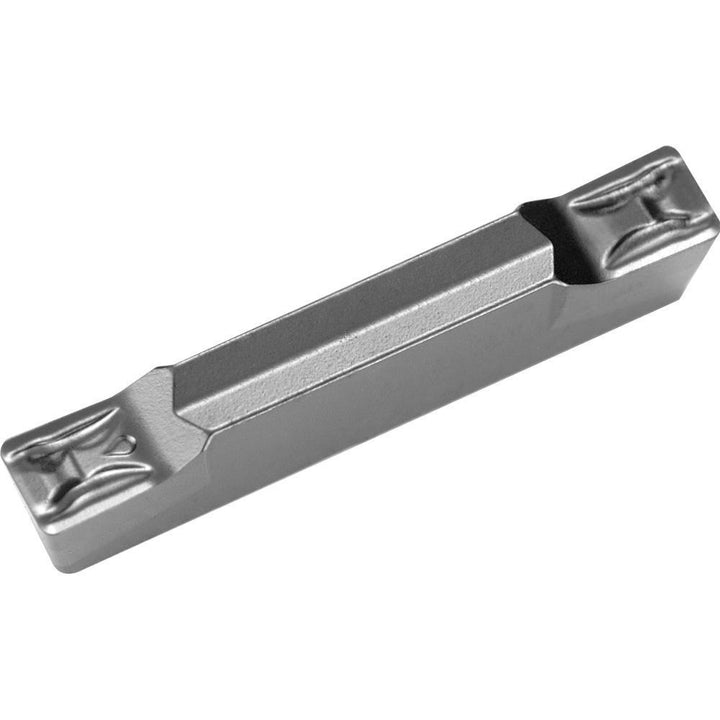

GDM3020N020GMPR1225 Solid Carbide Insert, Grade PR1225, Megacoat - Kyocera TKE10539
MFR# TKE10539ISO/ANSI# GDM3020N020GMPR1225Cat# GDM3020N-020GMSeries GD
$23.21List $33.40
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1225
MaterialSolid Carbide
CoatingMegacoat
Description
The Kyocera TKE10539 is a GDM3020N020GMPR1225 solid carbide indexable insert, grade PR1225, Megacoat coated. Suited for steel.
Specifications
Ansi codeGDM3020N020GMPR1225
Chip breakerGM
Coating finishMegacoat
Coating processPVD
Corner radius0.0078
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3020
Insert size code3020
Insert styleGDM
Insert thickness0.0906
Iso codeGDM3020N020GMPR1225
Manufacturers catalog numberGDM3020N-020GM
Manufacturer gradePR1225
Material gradeMicrograin
Maximum depth of cut (mm)25.50
Multi use toolYes
Overall length0.7874
Primary workpiece materialSteel
RakePositive
Rake angle2.00
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
