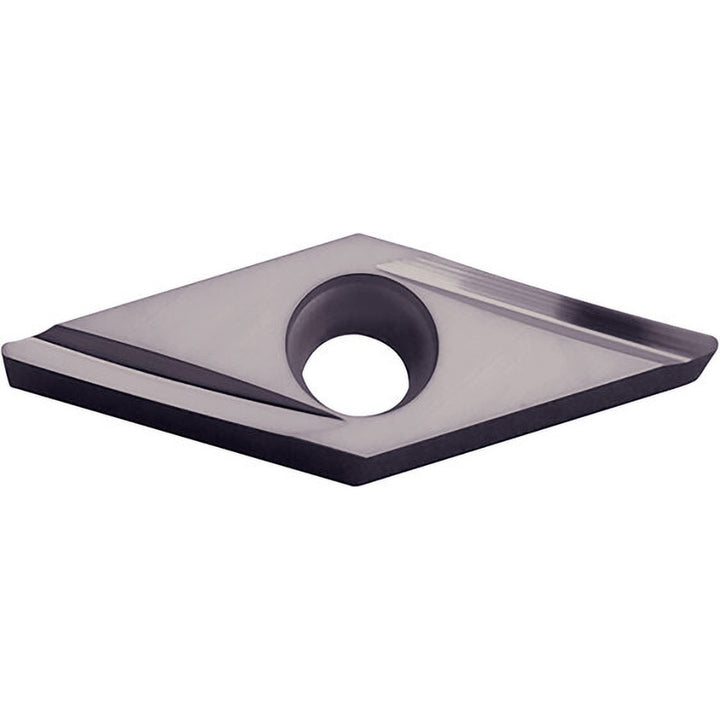

VBGT110302R-Y Carbide Insert, Grade PR930, TiCN - Kyocera TKT03775

Kyocera

VBGT110302R-Y Carbide Insert, Grade PR930, TiCN - Kyocera TKT03775

MFR# TKT03775ISO/ANSI# VBGT2205RYPR930Series ISOI

$33.50List $48.21 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradePR930
MaterialCarbide
CoatingTiCN

Description

The Kyocera TKT03775 is a VBGT110302R-Y carbide indexable insert, grade PR930, TiCN coated. Suited for steel.

Specifications

Chip breakerY
Clearance codeB
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVBGT2205RYPR930
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.8720
Insert materialCarbide
Insert shapeDiamond 35
Insert size code2205
Insert styleVBGT
Insert thickness in1/8
Iso codeVBGT110302R-Y
Length range0.7000 - 10.0000
Manufacturers catalog numberTKT03775
Manufacturer gradePR930
Material gradeSuper Micrograin
Maximum depth of cut0.2907
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle14
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
