Kyocera

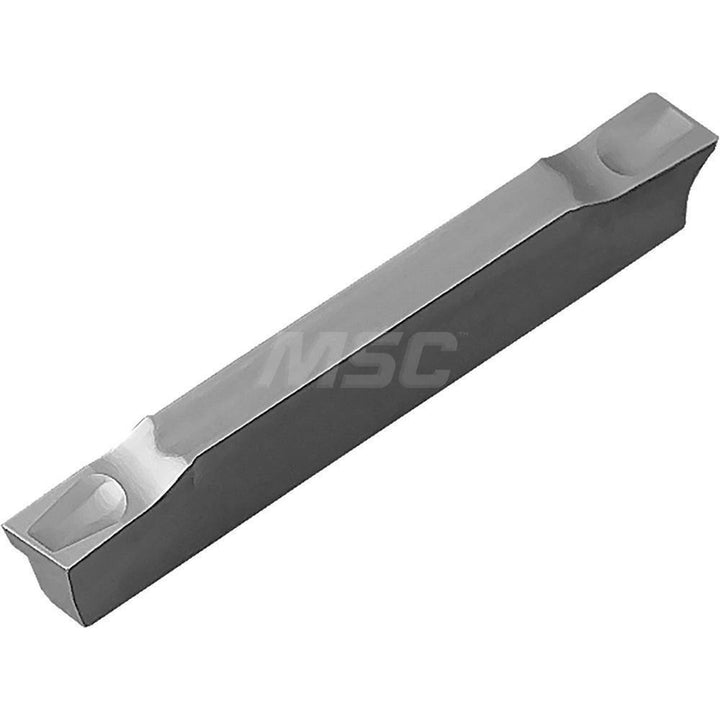

GMM2020-MT Solid Carbide Insert, Grade PR930, Coated - Kyocera TKT12717
MFR# TKT12717ISO/ANSI# GMM2020-MTSeries GMM
$26.52List $38.16
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR930
MaterialSolid Carbide
CoatingCoated
Description
The Kyocera TKT12717 is a GMM2020-MT solid carbide indexable insert, grade PR930, Coated coated. Suited for steel.
Specifications
Ansi codeGMM2020MTPR930
ChipbreakerMT
Coating finishCoated
Coating processPVD
Cutting height (mm)4.30
Cutting tool applicationCut-off; Grooving
Cutting width (mm)2.00
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2020
Insert styleGMM
Iso codeGMM2020-MT
Lead angle directionNeutral
Manufacturer gradePR930
Material gradeMicrograin
Multi use toolYes
Overall length (mm)20.30
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel
Single or double endDouble
StandardsANSI; ISO
