Kyocera

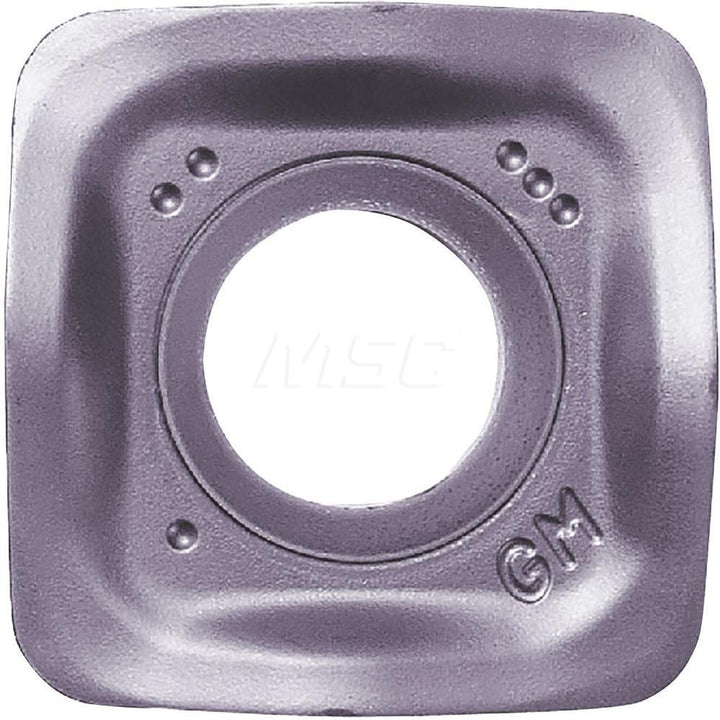

SOMT100420ER-GM Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB05607
MFR# TLB05607ISO/ANSI# SOMT100420ER-GMCat# SOMT100420ERGMSeries MFHR
$17.77List $25.58
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC13/32
ShapeSquare
GradePR1525
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLB05607 is a SOMT100420ER-GM solid carbide indexable insert, grade PR1525, MEGACOAT NANO coated. Suited for steel.
Specifications
Ansi codeSOMT100420ERGMPR1525
Chip breakerER-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in5/64
Cutter series compatibilityMFH
Cutting edge styleHoned
Hole diameter0.1811
Included angle degree90
Inscribed circle in13/32
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100420
Insert styleSOMT
Iso codeSOMT100420ER-GM
Length0.4055
Length range0.4000 to 0.4500
Manufacturers catalog numberSOMT100420ERGM
Manufacturer gradePR1525
Material applicationSteel; Steel; Stainless Steel
Maximum depth of cut0.3274
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle16
Secondary workpiece materialSteel; Stainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1800
Thickness range0.1750 to 0.1850
Width0.4055
