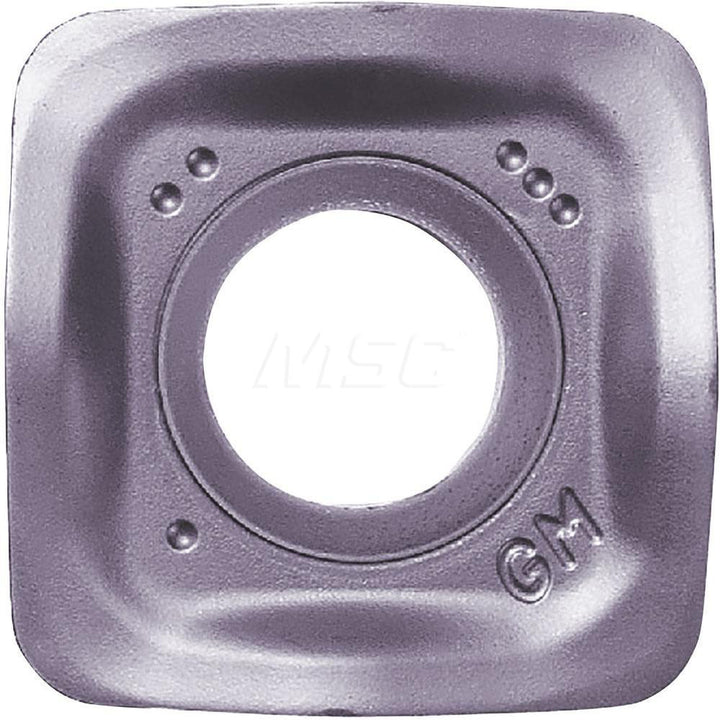

SOMT140520ER-GM Solid Carbide Insert, Grade PR1525, MEGACOAT NANO - Kyocera TLB05627
MFR# TLB05627ISO/ANSI# SOMT140520ER-GMCat# SOMT140520ERGMSeries MFHR
$21.65List $31.16
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradePR1525
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLB05627 is a SOMT140520ER-GM solid carbide indexable insert, grade PR1525, MEGACOAT NANO coated. Suited for steel.
Specifications
Ansi codeSOMT140520ERGMPR1525
Chip breakerER-GM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in5/64
Cutter series compatibilityMFH
Cutting edge styleHoned
Hole diameter0.2283
Included angle degree90
Inscribed circle0.5567
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140520
Insert styleSOMT
Iso codeSOMT140520ER-GM
Length0.5567
Length range0.5000 to 0.6000
Manufacturers catalog numberSOMT140520ERGM
Manufacturer gradePR1525
Material applicationSteel; Steel; Stainless Steel
Maximum depth of cut0.4786
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle16
Secondary workpiece materialSteel; Stainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.5567
