Kyocera

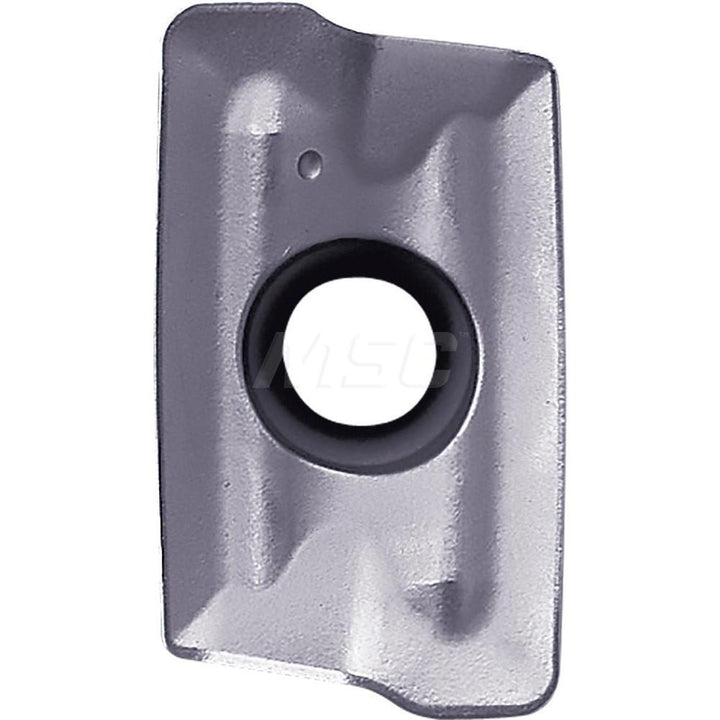

BDMT11T308ER-JT Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC00361
MFR# TLC00361ISO/ANSI# BDMT11T308ER-JTCat# BDMT11T308ERJTSeries MEC
$20.44List $29.41
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC00361 is a BDMT11T308ER-JT solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeBDMT11T308ERJTPR1535
Chip breakerER-JT
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMEC-T
Cutting edge styleHoned
Hole diameter0.1102
Included angle degree82
Inscribed circle0.2638
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleBDMT
Iso codeBDMT11T308ER-JT
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog numberBDMT11T308ERJT
Manufacturer gradePR1535
Material applicationStainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.4331
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle18.00
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1496
Thickness range0.1250 to 0.1500
Width0.2638
