Kyocera

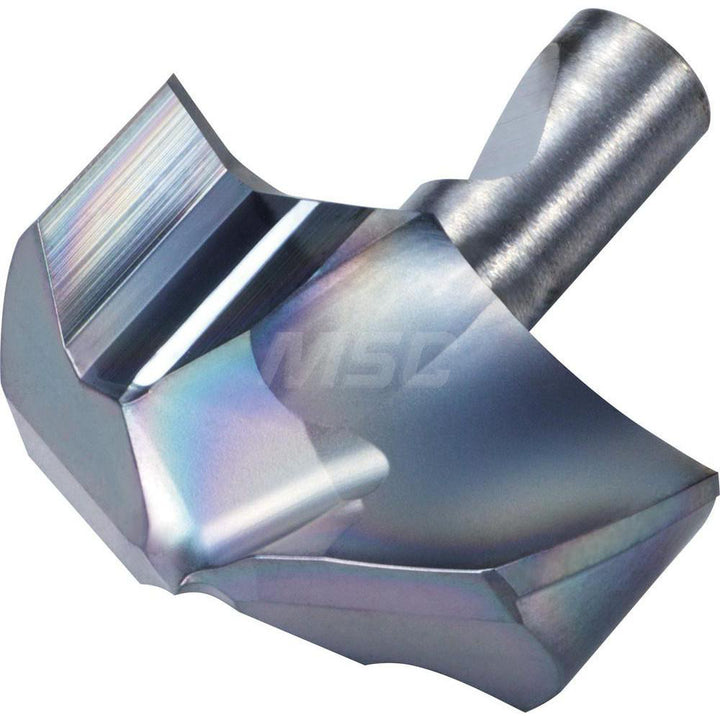

Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC06096
MFR# TLC06096Series DRA
$100.57List $144.72
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradePR1535
CoatingMEGACOAT NANO
Description
The Kyocera TLC06096 is a carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for steel, stainless steel.
Specifications
ApplicationsDrilling
Coating finishMEGACOAT NANO
Coating processPVD
Coolant throughNo
Cutting diameter0.3900
Drill point angle140
Flute typeHelical
Included angle degree140
Insert geometryM-GM
Insert holding methodScrew
Insert seat size95
Iso numberDA0990M-GM
Manufacturer gradePR1535
Material gradeP10; P20; P30; M15; M25; M35
Number of flutes2
Point typeStandard
Primary workpiece materialSteel; Stainless Steel
Secondary workpiece materialCast Iron
Spiral typeRegular Spiral
StyleDRA
Tip materialSolid Carbide
