Kyocera

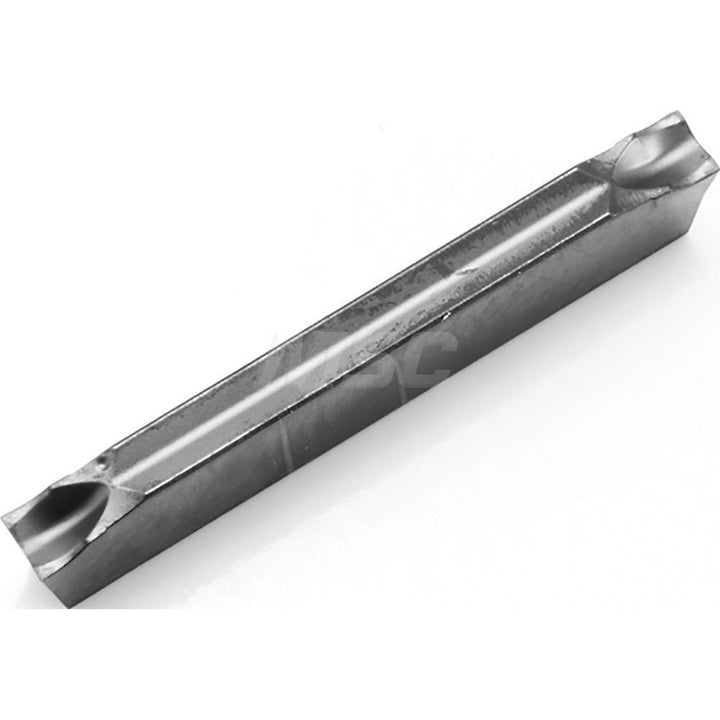

GDM1516N003PF Solid Carbide Insert, Grade PR1535, Megacoat Nano - Kyocera TLC10421
MFR# TLC10421ISO/ANSI# GDM1516N003PFCat# GDM1516N-003PFSeries GD
$25.73List $37.02
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1535
MaterialSolid Carbide
CoatingMegacoat Nano
Description
The Kyocera TLC10421 is a GDM1516N003PF solid carbide indexable insert, grade PR1535, Megacoat Nano coated. Suited for superalloy.
Specifications
Ansi codeGDM1516N003PFPR1535
Chip breakerPF
Coating finishMegacoat Nano
Coating processPVD
Corner radius0.0011
Cutting height0.1457
Cutting width0.0591
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size1516
Insert size code1516
Insert styleGDM
Insert thickness0.0472
Iso codeGDM1516N003PF
Manufacturers catalog numberGDM1516N-003PF
Manufacturer gradePR1535
Multi use toolYes
Overall length0.6299
Primary workpiece materialSuperalloy
RakePositive
Rake angle2.50
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
