Kyocera

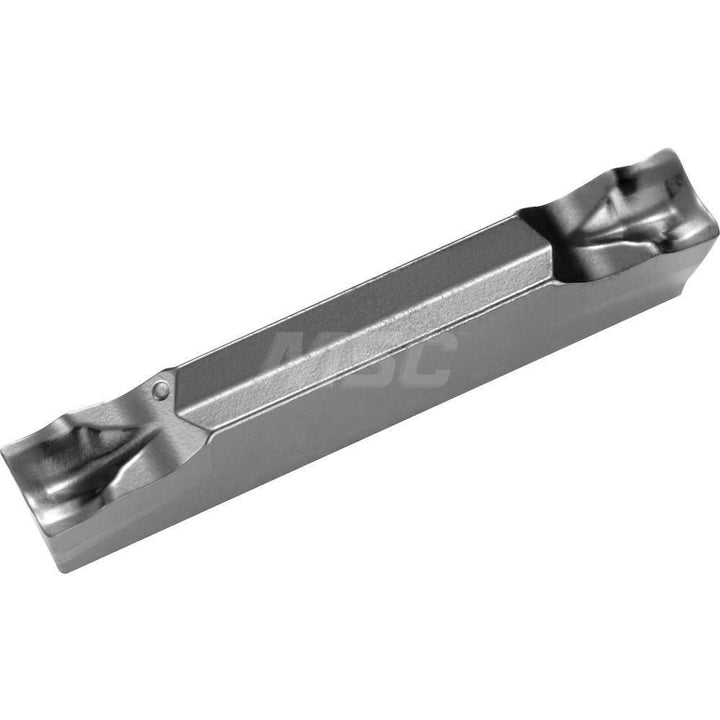

GDM2020N-020PM Solid Carbide Insert, Grade PR1535, Megacoat Nano - Kyocera TLC10520
MFR# TLC10520ISO/ANSI# GDM2020N-020PMCat# GDM2020N-020PMSeries GD
$25.73List $37.02
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1535
MaterialSolid Carbide
CoatingMegacoat Nano
Description
The Kyocera TLC10520 is a GDM2020N-020PM solid carbide indexable insert, grade PR1535, Megacoat Nano coated. Suited for superalloy.
Specifications
Ansi codeGDM2020N020PMPR1535
Chip breakerPM
Coating finishMegacoat Nano
Coating processPVD
Corner radius0.0078
Cutting height0.1693
Cutting width0.0787
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size2020
Insert size code2020
Insert styleGDM
Insert thickness0.0591
Iso codeGDM2020N-020PM
Manufacturers catalog numberGDM2020N-020PM
Manufacturer gradePR1535
Multi use toolYes
Overall length0.7874
Primary workpiece materialSuperalloy
RakePositive
Rake angle3.00
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
