Kyocera

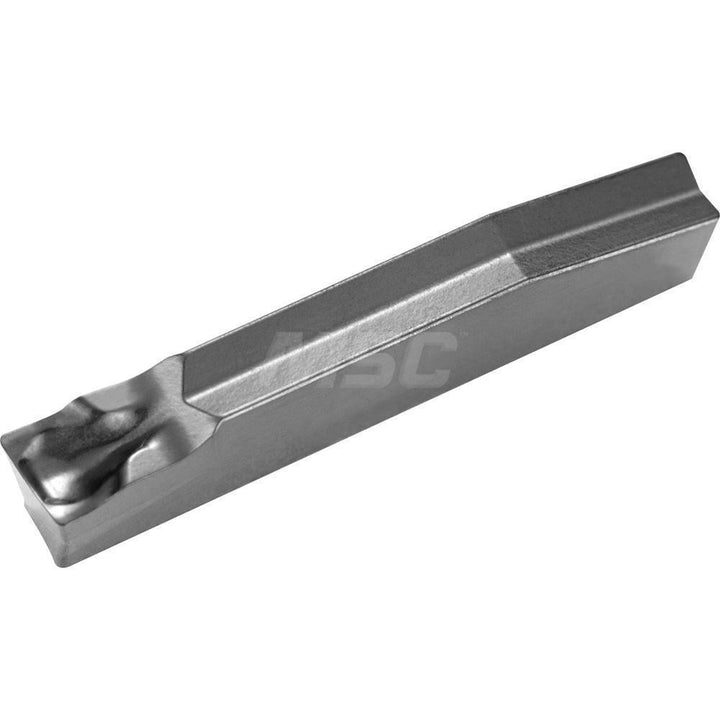

GDM3020R-025PM-6D Solid Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC10531
MFR# TLC10531ISO/ANSI# GDM3020R-025PM-6DCat# GDM3020R-025PM-6DSeries GD
$23.21List $33.40
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1535
MaterialSolid Carbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC10531 is a GDM3020R-025PM-6D solid carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for superalloy.
Specifications
Ansi codeGDM3020R025PM6DPR1535
Chip breakerPM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius0.0098
Cutting height0.1693
Cutting width0.1181
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3020
Insert size code3020
Insert styleGDM
Insert thickness0.0906
Iso codeGDM3020R-025PM-6D
Lead angle6
Manufacturers catalog numberGDM3020R-025PM-6D
Manufacturer gradePR1535
Multi use toolYes
Overall length0.7874
Primary workpiece materialSuperalloy
RakePositive
Rake angle3.00
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
