Kyocera

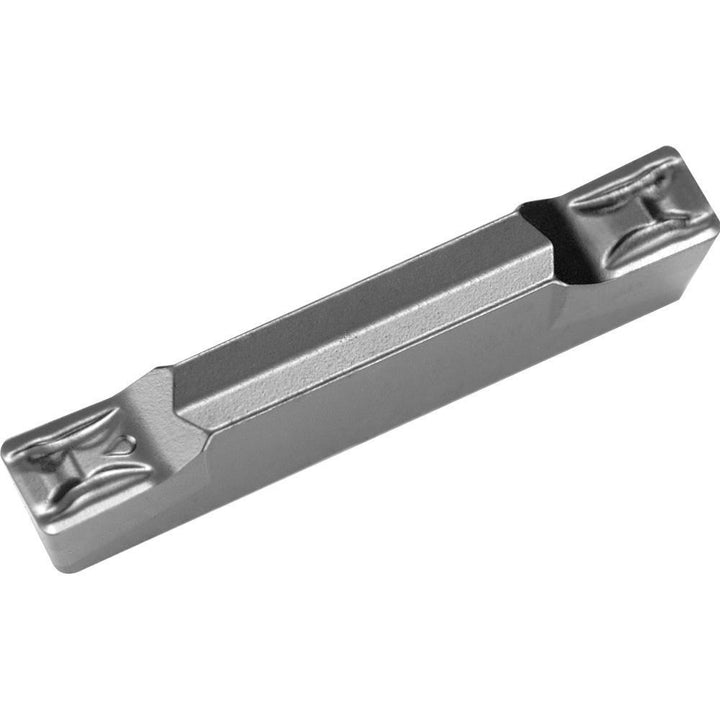

GDM3020N-040GM Carbide Insert, Grade PR1535, MEGACOAT NANO - Kyocera TLC10540
MFR# TLC10540ISO/ANSI# GDM3020N-040GMCat# GDM3020N-040GMSeries GD
$27.32List $39.31
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1535
MaterialCarbide
CoatingMEGACOAT NANO
Description
The Kyocera TLC10540 is a GDM3020N-040GM carbide indexable insert, grade PR1535, MEGACOAT NANO coated. Suited for superalloys.
Specifications
Ansi codeGDM3020N040GMPR1535
Chip breakerGM
Coating finishMEGACOAT NANO
Coating processPVD
Corner radius0.0157
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size3020
Insert size code3020
Insert styleGDM
Insert thickness0.0906
Iso codeGDM3020N-040GM
Manufacturers catalog numberGDM3020N-040GM
Manufacturer gradePR1535
Maximum depth of cut1.0039
Multi use toolYes
Overall length0.7874
Primary workpiece materialSuperalloys
RakePositive
Rake angle2
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
