Kyocera

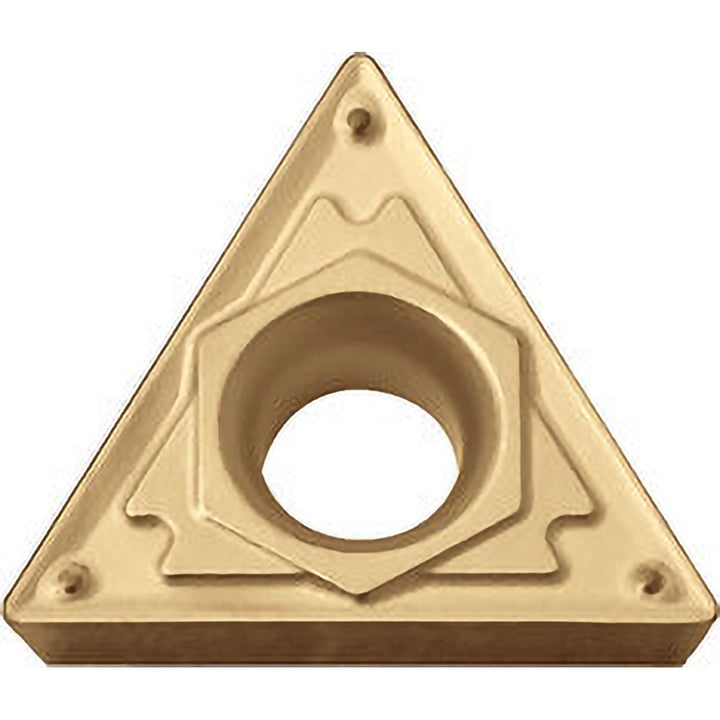

TCMT110204HQ Cermet Insert, Grade PV720, TiCN - Kyocera TLD05811
MFR# TLD05811ISO/ANSI# TCMT2151HQPV720Series ISOI
$14.96List $21.53
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradePV720
MaterialCermet
CoatingTiCN
Description
The Kyocera TLD05811 is a TCMT110204HQ cermet indexable insert, grade PV720, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle60degree
Industry standard numberTCMT2151HQPV720
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4334
Insert materialCermet
Insert shapeTriangle
Insert size code2151
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204HQ
Length range0.4000 - 0.5000
Manufacturers catalog numberTLD05811
Manufacturer gradePV720
Material gradeP01; P10; P20
Maximum depth of cut0.1445
Multi use applicationExternal Turning
Multi use toolNo
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.4334in
Wiper edgeNo
