Kyocera

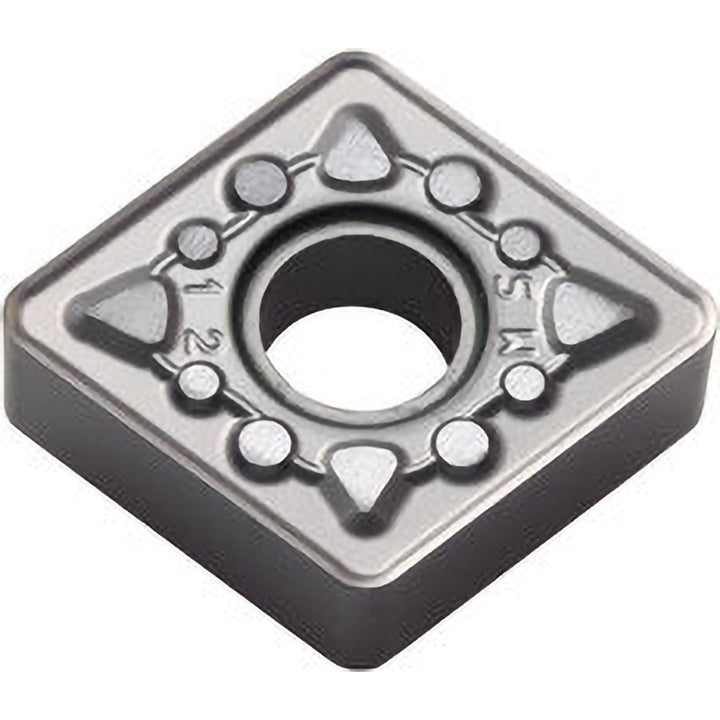

CNMG120408MS Carbide Insert, Grade PR005S, MEGACOAT HARD - Kyocera TLH00922
MFR# TLH00922ISO/ANSI# CNMG432MSPR005SSeries ISOI
$13.39List $19.27
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradePR005S
MaterialCarbide
CoatingMEGACOAT HARD
Description
The Kyocera TLH00922 is a CNMG120408MS carbide indexable insert, grade PR005S, MEGACOAT HARD coated. Suited for superalloys.
Specifications
Chip breakerMS
Clearance codeN
Coating finishMEGACOAT HARD
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG432MSPR005S
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1-1/64
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408MS
Length range0.5000 - 0.6000
Manufacturers catalog numberTLH00922
Manufacturer gradePR005S
Material gradeS01; S10
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys
RakeNegative
Rake angle-19
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
